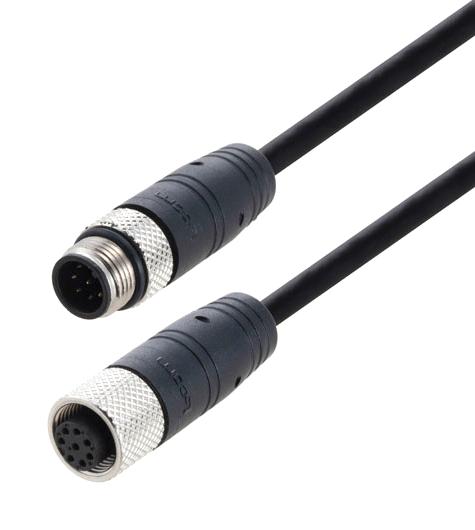

L-COM TRG884P6B05M M12 Connector
This M12 8-position shielded male/female cable assembly features a black polyurethane jacket and is rated IP67 for ingress protection. Designed for industrial automation and data communication, it uses stranded tin-plated copper conductors with aluminum/polyester foil shielding for noise reduction. Operating within -25°C to +80°C, it resists oil, sunlight, and chemicals while supporting up to 30 V AC/DC and 2 A current. Suitable for high-reliability applications requiring secure connections with molded thermoplastic and brass components, ensuring durability in harsh environments.
L-COM TRG884P6B05M M12 Connector Specifications:
- Connector Type: M12 shielded male/female
- Number of Positions: 8
- Cable Jacket: Polyurethane, black
- Conductor Material: Stranded tinned copper, 26 AWG
- Shielding: Aluminum/polyester foil with drain wire
- Voltage Rating: 30 V AC/DC
- Max Current: 2 A
- Temperature Range: -25°C to +80°C
- Ingress Protection Rating: IP67 (mated)
- Material: Molded thermoplastic polyurethane hood, PBT+GF insulator, brass shell/nut with nickel plating
- Flame Rating: VW-1
- Cable Length Options: 0.5 to 10 meters
Buy the Buy L-CO M12 Connector Part Number TRG884P6B05M Online
Purchase the L-CO M12 connector part number TRG884P6B05M online today. This high-quality, shielded 8-position connector is ideal for industrial automation, data transfer, and sensor applications. Featuring a robust polyurethane jacket, aluminum/polyester foil shielding, and brass components, it supports IP67 ingress protection and a temperature range of -25°C to +80°C. Suitable for harsh environments, it ensures optimal safety, durability, and top-tier performance for your projects, with easy installation and reliable connectivity.
Order your L-CO Series TRG884P6B05M shielded M12 cable assembly today and ensure reliable connection with unmatched durability in harsh industrial conditions.
Frequently Asked Questions
Where can I buy L-COM TRG884P6B05M?
You can click on the BUY or RFQ button to purchase TRG884P6B05M from an authorized L-COM distributor.
How do I troubleshoot issues or seek technical support for part TRG884P6B05M?
You can download the TRG884P6B05M datasheet or visit the L-COM website for support.
Who is the manufacturer of TRG884P6B05M?
L-COM
