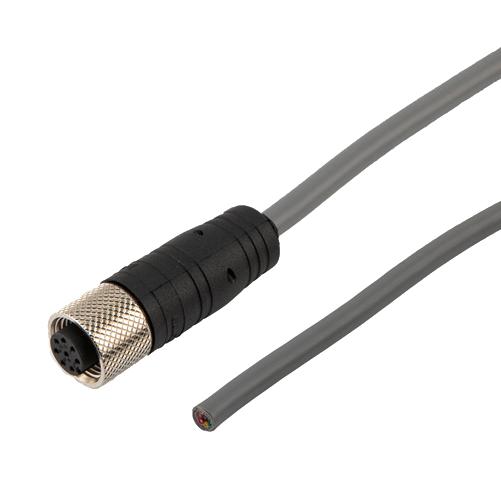

L-COM TRG888C6G5M Industrial M12 Sensor Cable
The TRG888-C6G-5M from L-com is a 5-meter M12 cable with an 8-pole A code female connector, featuring a straight wire design and a pre-cut pigtail end. Constructed with 24 AWG stranded conductors, it provides flexibility, durability, and excellent electrical performance across temperatures from -25°C to +105°C. The outdoor-rated UL 2517 PVC jacket is flame-resistant (VW-1), moisture and UV resistant, suitable for harsh environments. Equipped with a foil shield for EMI/RFI protection, the IP67 waterproof rating ensures reliable operation in industrial automation, sensing, communication, and networking applications, offering strong shielding and corrosion resistance.
L-COM TRG888C6G5M Industrial M12 Sensor Cable Specifications:
- Length: 5 meters
- Conductors: 24 AWG stranded copper
- Poles and Connector: 8-pole A code female connector
- Connector Type: Straight wire, threaded, IP67 rated
- Jacket Material: UL 2517 PVC, flame-rated VW-1
- Temperature Range: -25°C to +105°C
- Shielding: Aluminum/polyester foil shield with drain wire
- Insulation Material: PBT+GF
- Jacket Resistance: Resistant to sunlight, moisture
- Flame Rating: VW-1
- Ingress Protection: IP67 (mated)
- Shielding: Foil shield for EMI/RFI protection
- Connector Material: Nickel-plated brass
- Contacts: Phosphor bronze, gold-plated
Buy the L-com TRG888-C6G-5M – Reliable Industrial Grade M12 Sensor Cable for Automation Applications
Purchase the L-com TRG888-C6G-5M online today and ensure reliable connectivity for your automation, sensing, and communication needs. This 5-meter shielded M12 cable features an 8-pole female connector with a straight design, crafted with durable, UV-resistant PVC jacket that withstands harsh outdoor environments. Equipped with a foil shield for EMI and RFI protection, it provides excellent signal integrity. The waterproof IP67 rating when mated guarantees reliable operation in industrial, factory automation, and networking applications. Designed for crimping, soldering, or clamp connections, it offers easy integration and long-term durability in challenging conditions.
Get L-com TRG888-C6G-5M today—built for precision and long-lasting durability in demanding industrial environments.
Frequently Asked Questions
Where can I buy L-COM TRG888C6G5M?
You can click on the BUY or RFQ button to purchase TRG888C6G5M from an authorized L-COM distributor.
How do I troubleshoot issues or seek technical support for part TRG888C6G5M?
You can download the TRG888C6G5M datasheet or visit the L-COM website for support.
Who is the manufacturer of TRG888C6G5M?
L-COM
