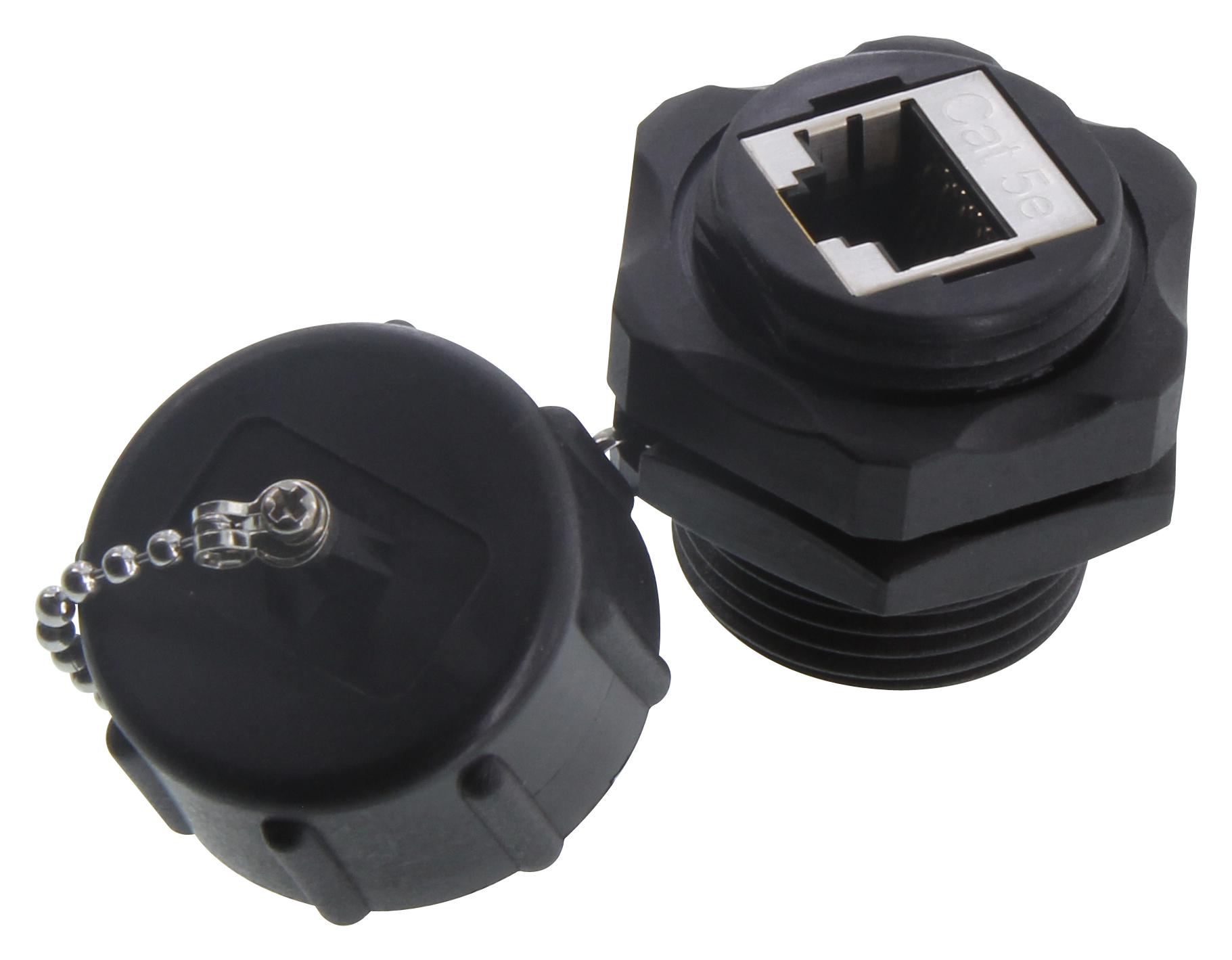

L-COM WPBHC5E Shielded Ethernet Connector
This IP67-rated shielded RJ45 connector is engineered for reliable data transmission in industrial, military, and telecommunications applications. Constructed with a brass case nickel-plated for durability, and a PBT + GF main body with UL94V-0 flame resistance, it features a high insertion life of 750 cycles and a contact force of 100 grams. The connector supports a maximum current of 1.5 amps, voltage withstand of 1000 V AC, and operates effectively within -10°C to +60°C, ensuring protection against dust and moisture with dust cap engagement.
L-COM WPBHC5E Shielded Ethernet Connector Specifications:
- Material: MAIN BODY PBT + GF, UL94V-0
- Shielded Case: BRASS, NICKEL PLATED
- Jack Contacts: PHOSPHOR BRONZE, 50 GOLD PLATED
- Insertion Life: 750 MATING CYCLES
- Contact Force: 100 GRAMS
- Plug Retention Force: 11LBF MIN
- Operating Temperature Range: -10°C TO +60°C
- Storage Temperature Range: -40°C TO +68°C
- Humidity: 10% ~ 90% RH
- IP Rating: IP67 WHEN DUST CAP IS ENGAGED
- Insulation Resistance: 500 MQ
- Dielectric Withstanding Voltage: 1000 V AC
- DC Current Rating: 1.5 AMPS
- DC Resistance: 0.1 Q
- Contact Resistance: 20mQ
Buy the L-Com WPBHC5E – Reliable Shielded Ethernet Connector for Industrial Applications
Order the shielded Ethernet connector now from our online store to guarantee high-quality data transmission in industrial, military, and telecom applications. Designed with a durable brass shield and UL94V-0 PBT body, it ensures IP67 dust and moisture resistance. With 750 insertion cycles, a contact force of 100 grams, and operating within -10°C to +60°C, this connector provides dependable performance under tough conditions. Secure your network setup with this certified, high-performance Ethernet connector today.
Buy L-Com WPBHC5E now and experience unmatched reliability and performance in demanding industrial, military, and telecom environments.
