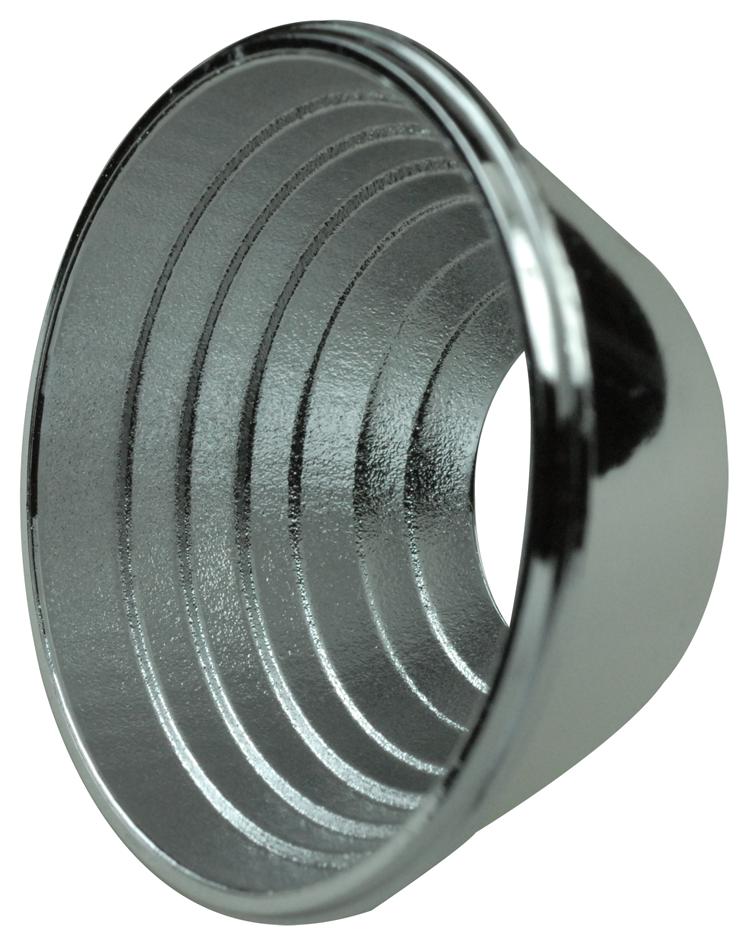

LEDIL C12097MINNIEWWWMTG Minnie Reflector
The LEDIL Minnie series reflectors are specifically engineered and optimized for use with MT-G series LEDs. These reflectors are crafted to ensure a highly uniform light distribution, maximizing the efficiency of the LED. Constructed from aluminum-coated PC (with a protective lacquer), they offer durability and heat resistance. Fastening is achieved through the use of appropriate adhesive, ensuring a secure and reliable bond. The Minnie reflectors are ideal for a wide range of lighting applications where precise light control and high efficiency are paramount.
LEDIL C12097MINNIEWWWMTG Minnie Reflector Specifications:
- Family: Minnie
- FWHM: 74 degrees
- Type: Reflector
- Efficiency: 90%
- LED: MT-G
- Color: Metal
- Diameter: 32.4 mm
- Height: 14.75 mm
- Style: Round
- Optic Material: PC
- Holder Material: -
- Fastening: Glue
- Status: Ready
- Gerber File: Available
- Product Series: Designed & optimized for MT-G series of LEDs
- Reflector Material: Aluminum coated PC (120 degrees Celcius)
- Protective Lacquer: 110 degrees Celcius
- Fastening Method: Appropriate adhesive
- Typical Divergence Note: Typical divergence varies with color, chip size, and position tolerance. Total divergence is measured at half peak intensity.
