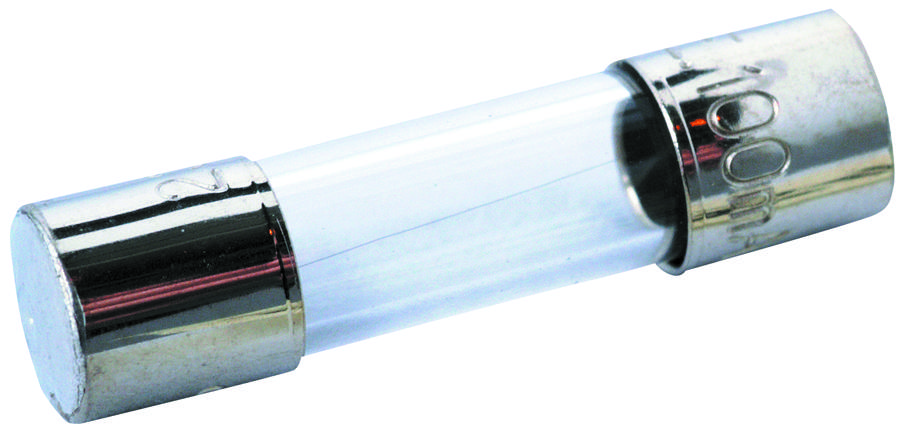

Littelfuse 0219002MXAP Time-Lag Cartridge Fuse
The LITTELFUSE 0219002.MXAP is a 5x20mm time-lag glass body cartridge fuse designed to IEC specification. It is RoHS compliant and meets IEC 60127-2 standards. This fuse is ideal for supplementary protection in appliance or utilization equipment, providing individual protection for components or internal circuits. It is available in bulk or on tape and reel packaging and offers various agency approvals and performance characteristics, including interrupting ratings and temperature re-rating curves.
Littelfuse 0219002MXAP Time-Lag Cartridge Fuse Specifications:
- Series: 219XA
- Size: 5x20mm
- Fuse Type: Time-Lag
- Body Material: Glass
- Cap Material: Nickel Plated Brass
- Lead Material: Tin Plated Copper
- RoHS Compliant: Yes
- Operating Temperature: -55°C to +125°C
- Agency Approvals: NBK220604-E10480A, NBK120802-E10480C, NBK220604-E10480B, NBK120802-E10480D, 2004010207110266, 2003010207079982, E10480, 29862, 1402844, 40016080, KM41462
- Ampere Range: 0.040A – 6.3A
- Interrupting Rating: 100A@350Vac (for 4A-6.3A)
- Solderability: MIL-STD-202, Method 211, Test Condition A
- Shock: MIL-STD-202, Method 107, Test Condition B
- Vibration: MIL-STD-202, Method 201
- Humidity: High RH (95%) and elevated temperature (40°C) for 240 hours
- Salt Spray: MIL-STD-202 Method 101, Test Condition B
- Packaging Options: Bulk (1000 pcs/pkg), Tape/Reel (MRET1=1000 pcs/reel)
Buy the 0219002.MXAP LITTELFUSE Time-Lag Cartridge Fuse | myMectronic
Purchase the LITTELFUSE 0219002.MXAP Time-Lag Cartridge Fuse securely and reliably online.
Buy Now
Frequently Asked Questions
Where can I buy Littelfuse 0219002MXAP?
You can click on the BUY or RFQ button to purchase 0219002MXAP from an authorized Littelfuse distributor.
How do I troubleshoot issues or seek technical support for part 0219002MXAP?
You can download the 0219002MXAP datasheet or visit the Littelfuse website for support.
Who is the manufacturer of 0219002MXAP?
Littelfuse
