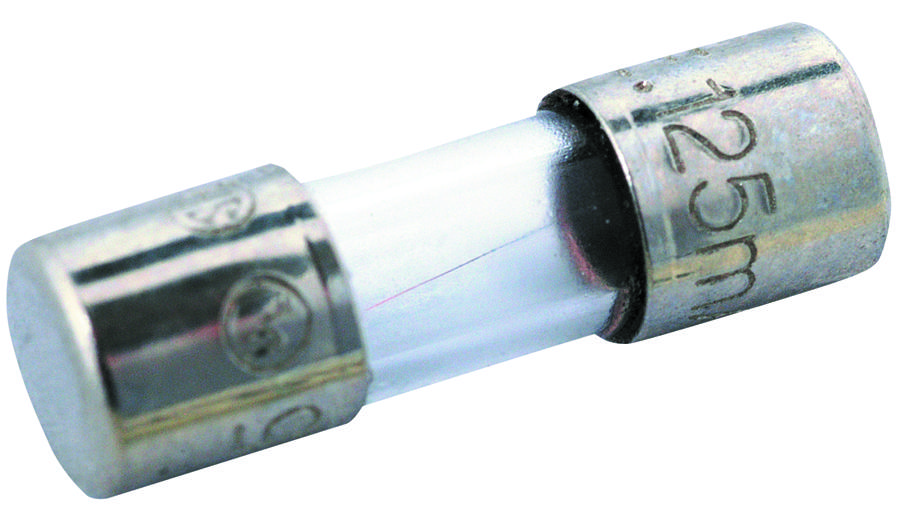

Littelfuse 0225002HXP Fast Acting Fuse
LITTELFUSE 224/225 Series Fast Acting Fuses are designed for applications requiring individual component or circuit protection. Available in axial lead and cartridge form, these fuses provide a compact solution with performance comparable to 3AG fuses. They are RoHS compliant, lead-free, and suitable for use in appliances and utilization equipment. The fuses feature nickel-plated brass caps, tin-plated copper leads, and glass bodies, ensuring reliable operation and durability. They are available in various voltage and amperage ratings to meet diverse application needs, and are marked with brand logo, current and voltage ratings, series, and agency approval marks.
Littelfuse 0225002HXP Fast Acting Fuse Specifications:
- Ampere Range: 0.375A - 10A
- Voltage Rating: 125V - 250V
- Interrupting Rating: 10A with 500A @ 125 Vdc
- Body Material: Glass
- Cap Material: Nickel-plated brass
- Lead Material: Tin-plated Copper
- Operating Temperature: –55ºC to 125ºC
- Thermal Shock: MIL-STD-202, Method 107
- Vibration: MIL-STD-202, Method 201
- Humidity: MIL-STD-202, Method 103
- Salt Spray: MIL-STD-202, Method 101
- Agency Approvals: E10480, 29862, NBK200405-E10480A/B/C/D, NBK110512-E10480A/B, NBK210405-E10480E/F
- Opening Time: 100% 4 hours, Minimum; 135% 1 hour, Maximum; 200% 1 sec., Maximum
- Dimensions: 4.2 - 4.8 (.16" - .19"), .635 ± .06 (.025" ± .002")
- Packaging: Bulk (1000 or 100), Reel and Tape (1500)
Buy the 0225002.HXP LITTELFUSE Fast Acting Fuse | myMectronic
Purchase LITTELFUSE 0225002.HXP fuses securely and efficiently for your industrial needs.
Buy Now
Frequently Asked Questions
Where can I buy Littelfuse 0225002HXP?
You can click on the BUY or RFQ button to purchase 0225002HXP from an authorized Littelfuse distributor.
How do I troubleshoot issues or seek technical support for part 0225002HXP?
You can download the 0225002HXP datasheet or visit the Littelfuse website for support.
Who is the manufacturer of 0225002HXP?
Littelfuse
