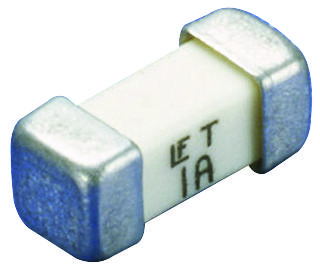

Littelfuse 0452008MRL Slo-Blo Fuse
The Nano2 Slo-Blo fuse series offers enhanced inrush withstand capabilities, ideal for protecting sensitive electronic equipment from nuisance openings caused by transient current surges. Its compact size, wide current re-rating options from 0.375A to 124A, RoHS compliance, halogen-free construction, and broad operating temperature range make it suitable for various applications including power supplies, networking, and industrial systems. Featuring ceramic body, gold-plated caps, and strict mechanical and environmental resilience, this fuse ensures reliable performance and safety in demanding environments.
Littelfuse 0452008MRL Slo-Blo Fuse Specifications:
- Body: Ceramic MILSTD-202, Method 107, Test
- Terminations: Gold-plated caps / Sn-dipped silver plated +125°C, 15 min
- Ratings: 0.375A to 124A, 50A @ 125 VAC/VDC, 300A @ 32 VDC
- Temperature Range: -65°C to +125°C
- Physical Size: 6.86 mm diameter, 6.10 mm length
- Soldering: Reflow, wave soldering parameters compliant with standards
- Vibration: 10-55 Hz, 2 hours, 1 min amplitude
- Shock: 100G, 6ms duration
- Insulation Resistance: Minimum 100 Megaohms after heat test
- Resistance: Measured at 10% of rated current, 25°C
- Compliance: RoHS, Halogen Free, UL, MILSTD-202
Buy the Littelfuse 0452008MRL – Reliable Slo-Blo Fuse for Industrial Applications
Secure your electronic systems with Littelfuse Slo-Blo Fuse, designed for enhanced inrush current protection and durability across industrial and commercial applications. This compact ceramic fuse offers a wide current range from 0.375A to 124A, RoHS compliance, halogen-free features, and reliable performance at various temperatures. Ideal for power supplies, networking equipment, and industrial systems, it ensures safety and minimizes nuisance fuse openings. Purchase online now to ensure optimal protection, compliance, and peace of mind for your electronic equipment.
Buy Littelfuse 0452008MRL now and experience unmatched reliability and performance in your electronic protection needs.
Frequently Asked Questions
Where can I buy Littelfuse 0452008MRL?
You can click on the BUY or RFQ button to purchase 0452008MRL from an authorized Littelfuse distributor.
How do I troubleshoot issues or seek technical support for part 0452008MRL?
You can download the 0452008MRL datasheet or visit the Littelfuse website for support.
Who is the manufacturer of 0452008MRL?
Littelfuse
