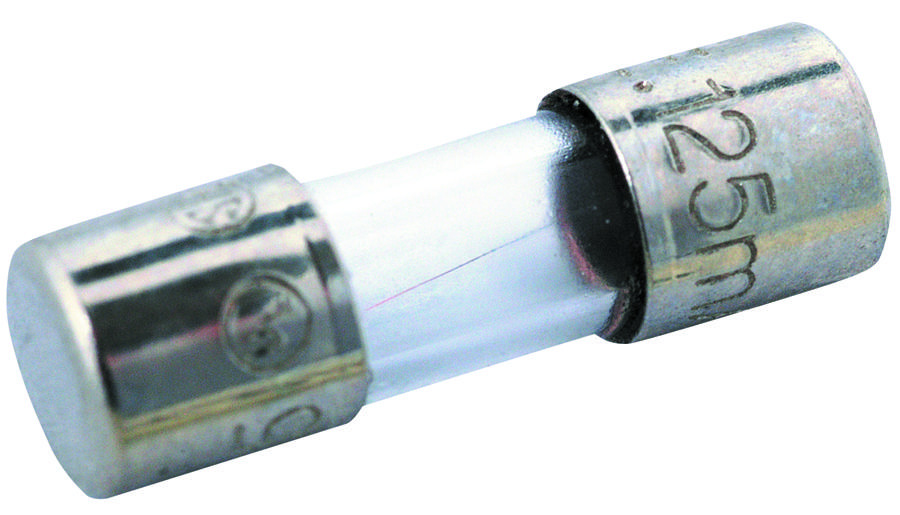

Littelfuse 0225002MXP Fast Acting Fuse
LITTELFUSE 224/225 Series Fast-Acting Fuses are designed for supplementary protection in appliance and utilization equipment. Available in cartridge and axial lead forms, these fuses provide reliable performance and space-saving benefits compared to 3AG counterparts. They are RoHS compliant and meet various industry standards, making them suitable for a wide range of applications requiring individual component or circuit protection. The fuses are available in various voltage and amperage ratings, catering to diverse electrical system needs.
Littelfuse 0225002MXP Fast Acting Fuse Specifications:
- Ampere Range: 0.375A - 10A
- Voltage Rating: 125V - 250V
- Interrupting Rating: 10A with 500A @ 125 Vdc
- Body Material: Glass
- Cap Material: Nickel-plated brass
- Lead Material: Tin-plated Copper
- Operating Temperature: –55ºC to 125ºC
- Thermal Shock: MIL-STD-202, Method 107
- Vibration: MIL-STD-202, Method 201
- Humidity: MIL-STD-202, Method 103
- Salt Spray: MIL-STD-202, Method 101
- Packaging: Bulk (1000 or 100), Reel and Tape (1500)
- Dimensions (Overall Length): 14.1 - 14.9 mm
- Dimensions (Body Diameter): 0.635 ± 0.06 mm
Buy the 0225002.MXP LITTELFUSE Fast Acting Fuse | myMectronic
Securely purchase the LITTELFUSE 0225002.MXP Fast Acting Fuse online for reliable protection in your applications.
