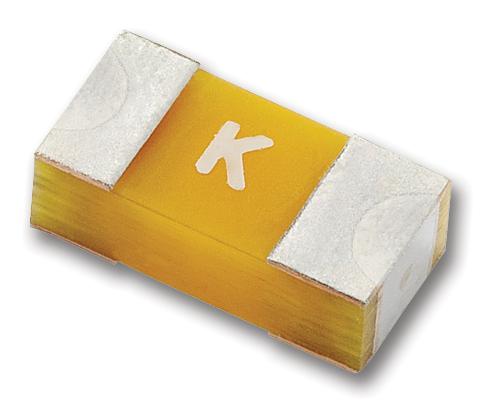

Littelfuse 0470002DRSNP 1206 Fast Acting Fuse
The Littelfuse 470 SNP series is a family of 125V rated, high-energy surface mount fuses perfect for applications where space is limited. These fuses offer standard Nano Fuse circuit protection capabilities with a compact 1206 footprint. They are RoHS compliant, halogen-free, and 100% lead-free, guaranteeing operation up to 125°C. Typical applications include LED lighting, power supply units, LCD/LED TVs, telecom systems, notebooks/PCs, white goods, gaming consoles, and battery charging circuits. The fuse provides fast-acting protection and is designed to withstand surge immunity tests.
Littelfuse 0470002DRSNP 1206 Fast Acting Fuse Specifications:
- Body Material: Epoxy Resin
- Termination Material: Cu/Ni/Sn (100% Pb-free)
- Product Marking: Current Rating
- Operating Temperature: -55°C to +125°C
- Voltage Rating: 125V
- Interrupting Rating: 300A @ 32VDC
- Ampere Range: 0.500 - 2.00A
- Opening Time (100% Rating): 4 Hours (Minimum)
- Opening Time (200% Rating): 5 Seconds (Maximum)
- RoHS Compliant: Yes
- Halogen Free: Yes
- Lead Free: Yes
- Footprint: 1206
- Agency Approvals: E10480
- Soldering Parameters - Peak Temperature: 250°C
- Soldering Parameters - Time within 5°C of Peak: 20-40 seconds
Buy the 0470002.DRSNP LITTELFUSE 1206 Fast Acting Fuse | myMectronic
Securely purchase the Littelfuse 0470002.DRSNP online and ensure reliable circuit protection for your applications.
Buy Now
Frequently Asked Questions
Where can I buy Littelfuse 0470002DRSNP?
You can click on the BUY or RFQ button to purchase 0470002DRSNP from an authorized Littelfuse distributor.
How do I troubleshoot issues or seek technical support for part 0470002DRSNP?
You can download the 0470002DRSNP datasheet or visit the Littelfuse website for support.
Who is the manufacturer of 0470002DRSNP?
Littelfuse
