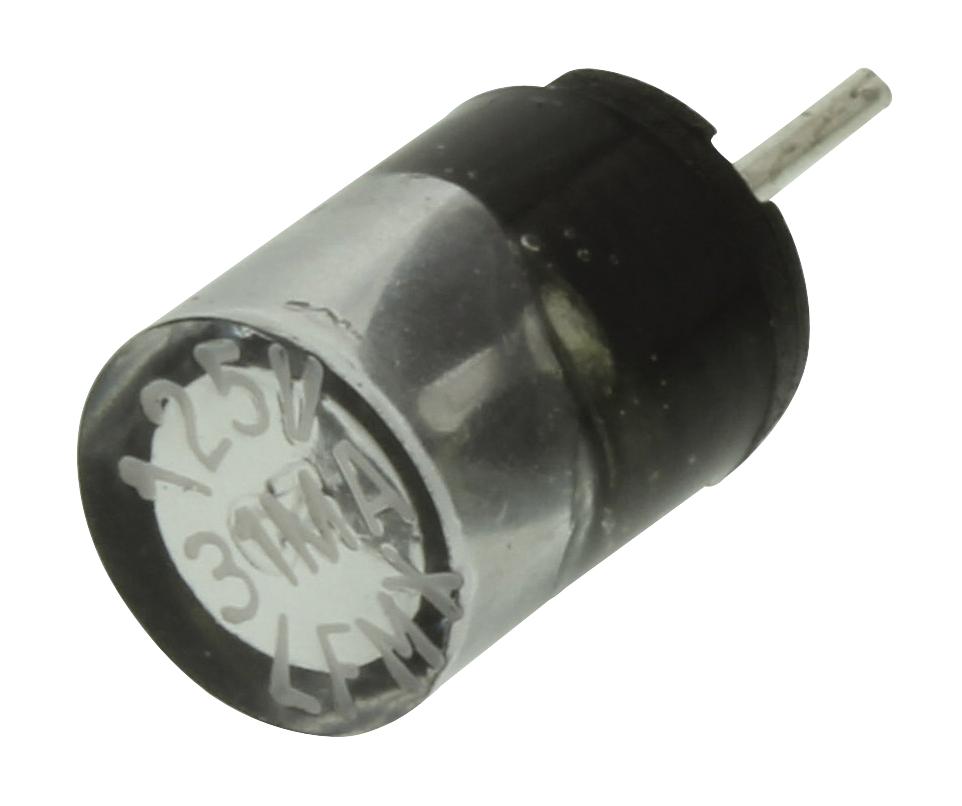

Littelfuse 0273031V Fast-Acting Fuse
Littelfuse's 0273.031V MICRO™ fuse, originally developed for the U.S. Space Program, provides exceptional reliability in a compact design. Available in radial lead styles and a broad range of ampere ratings (0.002A to 5A), this fuse caters to diverse design requirements. It's ideal for printed circuit boards, electronic components, and similar equipment, offering military-grade availability and high breaking capacity. The fuse's clear cover option allows for visual inspection of the fuse element's status.
Littelfuse 0273031V Fast-Acting Fuse Specifications:
- Ampere Range: 0.002A - 5A
- Operating Temperature: –55ºC to +125ºC
- Materials: Nickel Plated Brass (cap), R-4 Ryton (base), Tin Plated Copper (leads)
- Voltage Rating: 125V
- Interrupting Rating: 10,000A@125VAC/VDC
- Agency Approvals: E10480, 29862, QPL FM02
- Opening Time: 4 Hours (0.002A - 0.3A), 5 Seconds (0.4A - 5A)
- Product Marking: Current and voltage ratings stamped on cap
- Lead Diameter: 0.025 inch
Buy the 0273.031V LITTELFUSE Fast-Acting Fuse | myMectronic
Purchase the Littelfuse 0273.031V fuse securely and efficiently for your electronic component needs.
Buy Now
Frequently Asked Questions
Where can I buy Littelfuse 0273031V?
You can click on the BUY or RFQ button to purchase 0273031V from an authorized Littelfuse distributor.
How do I troubleshoot issues or seek technical support for part 0273031V?
You can download the 0273031V datasheet or visit the Littelfuse website for support.
Who is the manufacturer of 0273031V?
Littelfuse
