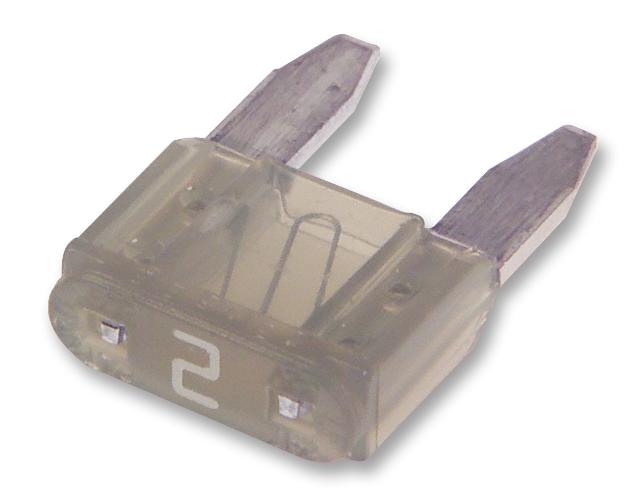

Littelfuse 0297002WXNV Mini Blade Fuse
The LITTELFUSE MINI Fuse is a compact and reliable circuit protection solution widely adopted in the automotive industry. Its miniature design allows for efficient space utilization while providing robust protection against overcurrent conditions. The fuse's ability to withstand high temperatures makes it ideal for challenging automotive environments. It meets SAE J2077, ISO 8820-3, and UL 248 standards, ensuring consistent performance and safety. This fuse is a critical component for protecting vehicle electrical systems and is a recommended choice for circuit protection.
Littelfuse 0297002WXNV Mini Blade Fuse Specifications:
- Interrupting Rating: 1000A @ 32 VDC
- Voltage Rating: 32 VDC
- Operating Temperature Range: -40˚C to +125˚C
- Terminals: Ag plated zinc alloy
- Housing Materials: PA66
- Complies with: Meets SAE J2077, ISO 8820-3, UL 248
- Opening Time Min: 360,000 s
- Opening Time Max: –
- Current Rating: 2 A
- Typical Voltage Drop: 171 mV
- Cold Resistance: 55.60 mΩ
- I t: 2.8 A²s
- Package Size: 3000
