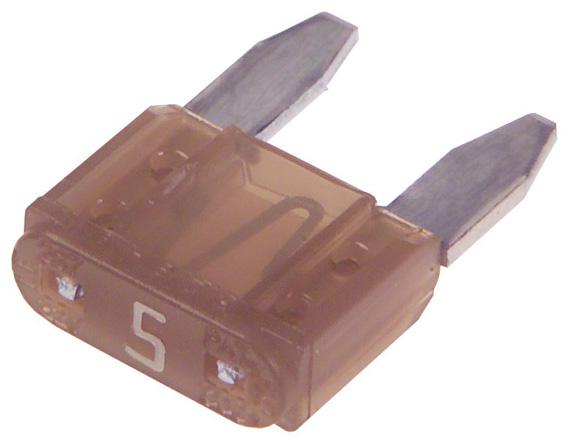

Littelfuse 0297005WXNV 32V Blade Fuse
The Littelfuse MINI Blade Fuse is rapidly becoming the new standard for vehicle circuit protection. Its miniature design allows for more circuits to be protected while utilizing less space, and its ability to cope with high temperatures in adverse environments makes it the recommended choice for protection. This fuse meets SAE J2077, ISO 8820, and UL 248 standards, ensuring reliable performance in automotive applications. The fuse's compact size and robust design make it ideal for modern vehicles with increasingly complex electrical systems.
Littelfuse 0297005WXNV 32V Blade Fuse Specifications:
- Interrupting Rating: 1000A @ 32 VDC
- Voltage Rating: 32 VDC
- Operating Temperature Range: -40˚C to +125˚C
- Terminals: Ag plated
- Meets: SAE J2077 ISO 8820 UL 248
- Pack Size: 3000
- Series: 0297xxx.WXNV
- Time-Current Characteristics: See datasheet table
- Current Rating: 5 A
- Voltage Drop: 129 mV
- Cold Resistance: 17.75 m Ω
- I²t: 25 A²s
Buy the 0297005.WXNV LITTELFUSE 32V Blade Fuse | myMectronic
Purchase the Littelfuse 0297005.WXNV 32V Blade Fuse securely and conveniently online.
Buy Now
Frequently Asked Questions
Where can I buy Littelfuse 0297005WXNV?
You can click on the BUY or RFQ button to purchase 0297005WXNV from an authorized Littelfuse distributor.
How do I troubleshoot issues or seek technical support for part 0297005WXNV?
You can download the 0297005WXNV datasheet or visit the Littelfuse website for support.
Who is the manufacturer of 0297005WXNV?
Littelfuse
