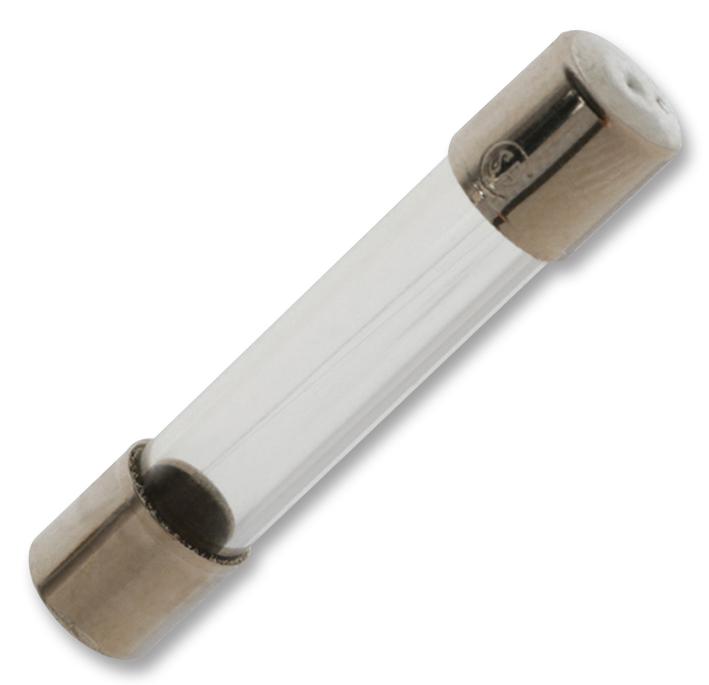

Littelfuse 0312750MXP Fast Acting Fuse
The Littelfuse 312/318 Series Fast-Acting Fuse is designed to offer reliable performance and cost-effective circuit protection for a wide range of applications. It's suitable for use in appliances and utilization equipment, providing individual protection for components and internal circuits. Available in both cartridge and axial lead formats, this fuse meets UL and RoHS compliance standards, ensuring environmental responsibility and safety. Its robust construction and fast-acting response make it a dependable choice for protecting sensitive electronic components.
Littelfuse 0312750MXP Fast Acting Fuse Specifications:
- Agency Approvals: E10480, AU1410, LR 29862, NBK040205-E10480B/F
- Ampere Range: 62mA - 30A
- Interrupting Rating: 10KA@125Vac, 200A@250Vac
- Operating Temperature: -55°C to +125°C
- Terminal Strength: MIL-STD-202G, Method 211A, Test Condition A
- Solderability: Reference IEC 60127 Second Edition 2003-01 Annex A
- Body Material: Glass
- Cap Material: Nickel-plated brass
- Lead Material: Tin-plated Copper
- Humidity Resistance: MIL-STD-202G, Method 101D, Test Condition B
- Salt Spray Resistance: MIL-STD-202G, Method 103B
- Lead Length (Standard): 39.68 mm (1.56")
- Lead Length (Short): 12.70 mm (0.50")
Buy the 0312.750MXP LITTELFUSE Fast Acting Fuse | myMectronic
Purchase the Littelfuse 0312.750MXP fuse securely and efficiently for your industrial needs.
Buy Now
Frequently Asked Questions
Where can I buy Littelfuse 0312750MXP?
You can click on the BUY or RFQ button to purchase 0312750MXP from an authorized Littelfuse distributor.
How do I troubleshoot issues or seek technical support for part 0312750MXP?
You can download the 0312750MXP datasheet or visit the Littelfuse website for support.
Who is the manufacturer of 0312750MXP?
Littelfuse
