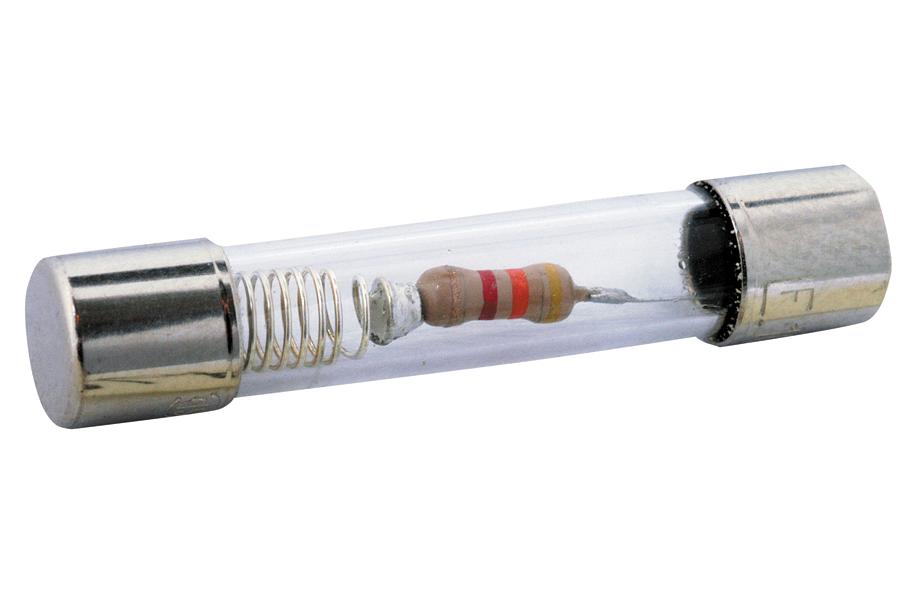

Littelfuse 0313030HXP Axial Lead Time Lag Fuse
The Littelfuse 313/315 Series Slo-Blo[®] fuse is a time-lag fuse designed to meet a broad range of application requirements. It offers reliable performance and cost-effective circuit protection for appliances and utilization equipment. A unique indicating design instantly identifies itself upon opening, eliminating guesswork and time-consuming circuit testing. This fuse provides the same quality performance characteristics as the standard 3AG Slo-Blo[®] Fuse design and is available with various forming dimensions.
Littelfuse 0313030HXP Axial Lead Time Lag Fuse Specifications:
- Ampere Rating: 10mA - 30A
- Voltage Rating: 250V
- Interrupting Rating: Up to 10kA
- Operating Temperature: -55°C to +125°C
- Agency Approvals: E10480, LR 29862, PSE, SU05001
- Body Material: Glass
- Cap Material: Nickel-plated brass
- Lead Material: Tin-plated Copper
- Terminal Strength: MIL-STD-202G, Method 211A
- Solderability: IEC 60127 Annex A
- Product Marking: Brand logo, current and voltage ratings, series and agency approval marks
- Salt Spray: MIL-STD-202G, Method 101D
Buy the 0313030.HXP LITTELFUSE Axial Lead Time Lag Fuse | myMectronic
Purchase the Littelfuse 0313030.HXP fuse securely and efficiently online.
Buy Now
Frequently Asked Questions
Where can I buy Littelfuse 0313030HXP?
You can click on the BUY or RFQ button to purchase 0313030HXP from an authorized Littelfuse distributor.
How do I troubleshoot issues or seek technical support for part 0313030HXP?
You can download the 0313030HXP datasheet or visit the Littelfuse website for support.
Who is the manufacturer of 0313030HXP?
Littelfuse
