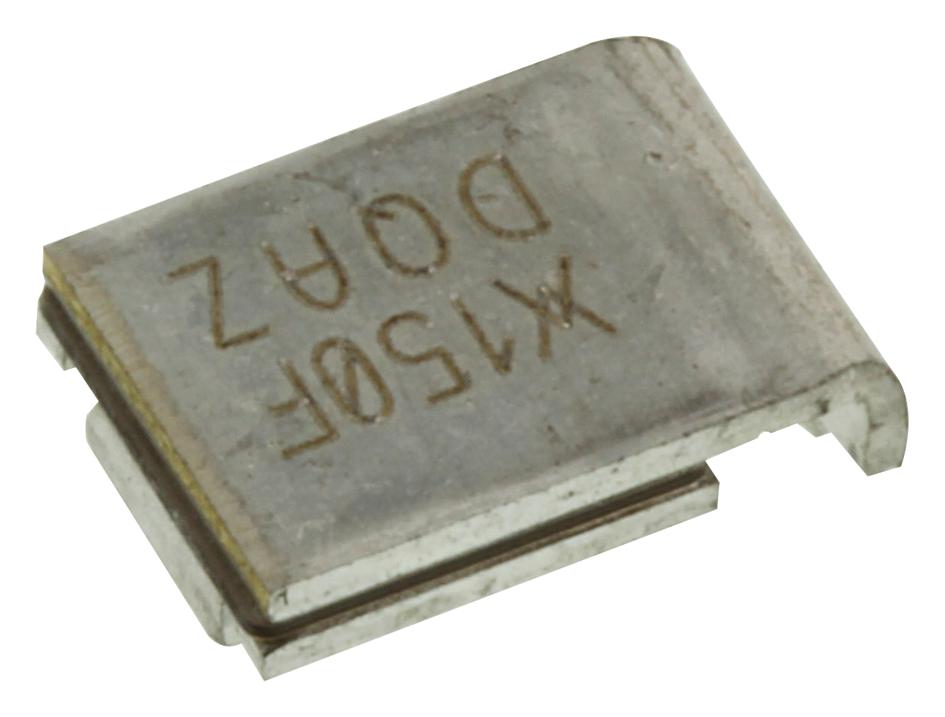

Littelfuse SMD150F2 Surface-Mount PolySwitch
The product is a surface-mount PolySwitch resettable device designed for efficient circuit protection in various electronics applications. Available in multiple series and sizes, it features fast trip times, low resistance, and high voltage ratings. Its compact footprint ensures space savings, while its RoHS and halogen-free compliance meet regulatory standards. Suitable for consumer electronics, automotive, multimedia, and industrial controls, the device provides reliable overcurrent protection with adjustable hold currents, temperature derating, and UL, CSA, TUV approvals for high-volume manufacturing compatibility.
Littelfuse SMD150F2 Surface-Mount PolySwitch Specifications:
- Size: 4532mm/1812mils
- Hold Current: 0.75A
- Voltage Rating/Maximum Resistance: 33V/0.36Ω
- Operating Temperature Range: -40°C to 125°C
- Terminal Pad Material: 100% Matte Tin with Nickel Underplate
- Soldering: Category 1 or 3 IEC-STD, with reflow profiles up to 260°C
- Flammability Resistance: IEC 695-2-2 Needle Flame Test for 20 seconds
- Storage Conditions: Max 40°C, 70% R.H.
- Resistance Change after Aging: 3-5%
- Environmental Durability: MIL-STD-202, MIL-STD-883C, no change in vibration or solvent resistance
- Agency Recognitions: UL, CSA, TUV
- Physical Dimensions: Length 4.73mm, Width 4.73mm, Height 2.45mm (approximate)
Buy the Littelfuse Series SMD150F: Efficient Circuit Protection Device
Découvrez le PolySwitch monté en surface, idéal pour protéger vos circuits contre les surintensités. Compact, rapide, et certifié UL, CSA, TUV, ce dispositif offre une fiabilité exceptionnelle. Parfait pour applications industrielles, automobiles, et appareils multimédia, il garantit une protection efficace tout en économisant de l'espace sur la carte. Commandez votre PolySwitch Littelfuse Series SMD150F en ligne dès aujourd'hui et donnez à vos projets électroniques la protection fiable qu'ils méritent, conforme aux normes environnementales RoHS et halogène exempt.
Order your Littelfuse Series SMD150F high-reliability circuit protection device today and ensure your electronics are safeguarded with precision and regulatory compliance.
Frequently Asked Questions
Where can I buy Littelfuse SMD150F2?
You can click on the BUY or RFQ button to purchase SMD150F2 from an authorized Littelfuse distributor.
How do I troubleshoot issues or seek technical support for part SMD150F2?
You can download the SMD150F2 datasheet or visit the Littelfuse website for support.
Who is the manufacturer of SMD150F2?
Littelfuse
