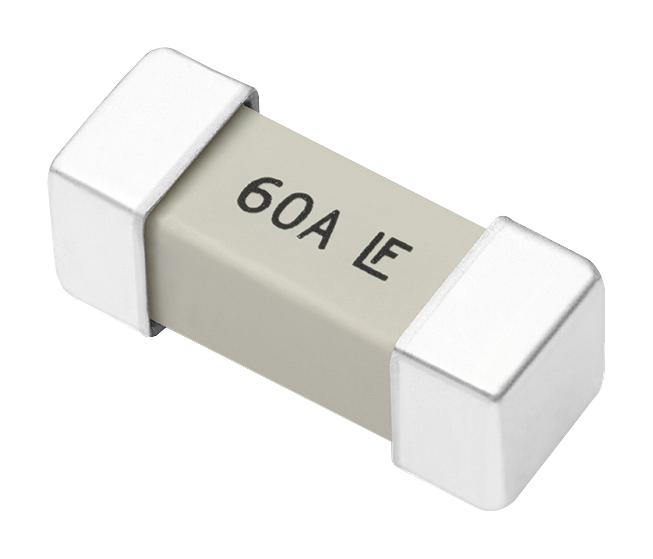

Littelfuse 0456060DRSDE High Current Surface Mount Fuse
The high current Nano fuse is a compact surface-mount fuse designed for high current applications, supporting ratings of 40 A to 60 A. It features a high interrupting rating of 600 A at 80 VDC, UL recognition, and very low cold resistance, temperature rise, and voltage drop. Ideal for power regulation modules, storage systems, base station power supplies, and cooling fans, it ensures reliable performance with minimal nuisance tripping amid high inrush currents. Its robust ceramic body and silver-plated brass cap provide durability and compliance with industry standards.
Littelfuse 0456060DRSDE High Current Surface Mount Fuse Specifications:
- Current Rating: 40 A to 60 A
- Interrupting Rating: 600 A at 80 VDC
- Body Material: Ceramic
- Cap Material: Silver Plated Brass
- Cold Resistance: Very low, measured at less than 10% at rated current at 23°C
- Temperature Rise: Minimal
- Voltage Rating: Up to 80 VDC
- Standards: UL Recognized, CSA, NMX 248-1
- Resistance: Approximately 0.0013 ohms at 40 A, 0.00105 ohms at 50 A, 0.00085 ohms at 60 A
- Soldering: Reflow at 150°C to 260°C for 60-180 seconds, Pb-free compatible
- Dimensions: 17.0 x 11.0 x 1.7 mm typical
- Certifications: UL, CSA, NMX
Buy the Littelfuse Series Nano Surface Mount High Current Fuse: 0456060DR
Enhance your high current protection with the Littelfuse Nano Surface Mount Fuse. Designed for reliable performance in power modules, storage systems, and base station power supplies, this fuse supports ratings from 40 A to 60 A, featuring high interrupting ratings of 600 A at 80 VDC. Its ceramic body and silver-plated brass cap ensure durability, while low cold resistance minimizes heat generation. Easily integrate into high-volume assemblies and ensure safety and efficiency in critical applications by purchasing online today for fast delivery and dependable protection.
Buy Littelfuse Nano Series 0456060DR high current surface mount fuse now and ensure reliable protection with UL recognition and high interrupting capacity.
Frequently Asked Questions
Where can I buy Littelfuse 0456060DRSDE?
You can click on the BUY or RFQ button to purchase 0456060DRSDE from an authorized Littelfuse distributor.
How do I troubleshoot issues or seek technical support for part 0456060DRSDE?
You can download the 0456060DRSDE datasheet or visit the Littelfuse website for support.
Who is the manufacturer of 0456060DRSDE?
Littelfuse
