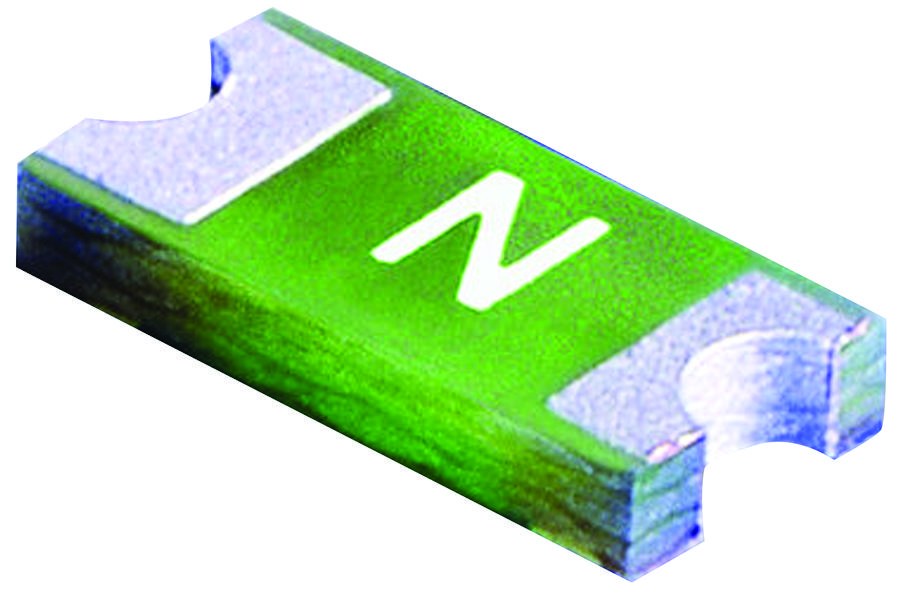

Littelfuse 0466003NR Fast-Acting Surface Mount Fuse
The LITTELFUSE 466 Series Fast-Acting Surface Mount Fuse (SMF) is a compact (1206 size) thin-film device engineered for secondary circuit protection in space-limited applications, particularly in portable electronic devices. This series is lead-free and meets RoHS requirements, with halogen-free options available. It features an alloy-based element, a low profile for height-constrained designs, and a flat top surface for easy pick-and-place assembly. The fuse provides sensitive inrush withstand characteristics and is marked with a code indicating its amperage rating. Typical applications include cell phones, DVD players, battery packs, hard disk drives, and digital cameras.
Littelfuse 0466003NR Fast-Acting Surface Mount Fuse Specifications:
- Series: 466
- Fuse Type: Fast-Acting Surface Mount
- Size: 1206
- Operating Temperature: -55°C to 90°C
- Halogen Free: Available
- Termination: 100% Tin over Nickel over Copper
- Insulation Resistance: Greater than 10,000 ohms
- Vibration Resistance: Per MIL-STD-202F, Method 201A
- Soldering Heat Resistance: Per MIL-STD-202G, Method 210F
- Ampere Range: 125mA - 5A
- Nominal Voltage: 125V or 63V
- Interrupting Rating: Varies by Ampere Rating (see datasheet)
- Resistance: Varies by Ampere Rating (see datasheet)
- Typical Applications: Cell phones, DVD players, battery packs, hard disk drives, digital cameras
