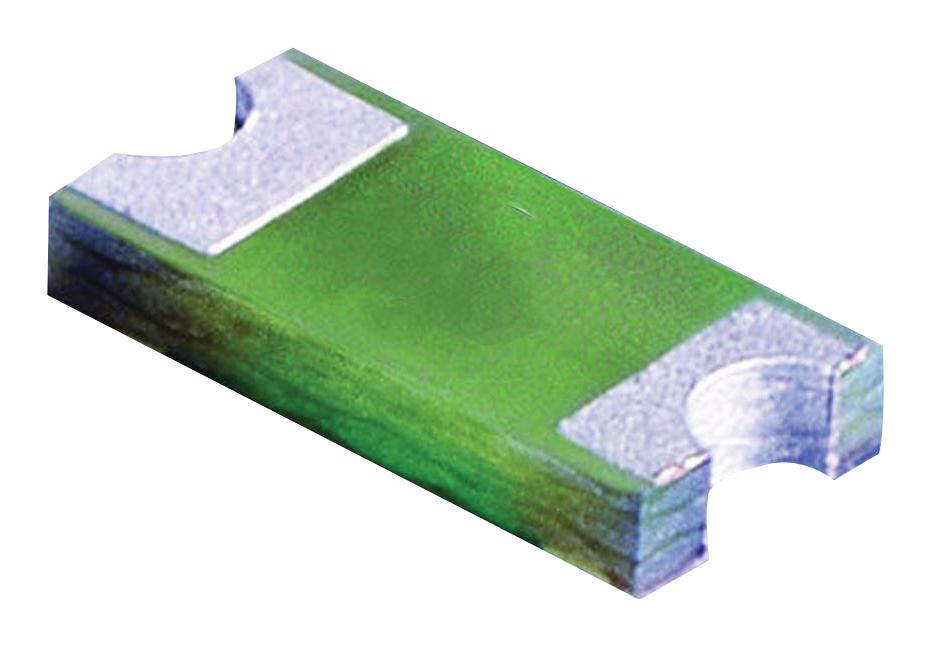

Littelfuse 0466125NRHF Fast-Acting Fuse
The Littelfuse 466 Series 0466.125NRHF is a fast-acting surface mount fuse (SMF) specifically engineered for compact electronic devices. This 1206 size fuse provides reliable overcurrent protection in applications like cell phones, DVD players, and digital cameras. It features a thin-film construction, is 100% lead-free, and meets RoHS requirements. The 'HF' suffix indicates halogen-free compliance. The fuse's alloy-based element provides superior inrush withstand characteristics and is marked for easy amperage identification. Its low profile and flat top surface are ideal for pick-and-place operations, ensuring efficient integration into modern electronic designs.
Littelfuse 0466125NRHF Fast-Acting Fuse Specifications:
- Agency Approvals: E10480 (.125A - 5A), 29862 (.125A - 5A)
- Operating Temperature: -55°C to 90°C
- Thermal Shock: Withstands 5 cycles of -55°C to 125°C
- Humidity: MIL-STD-202, Method 103, Condition D
- Vibration: MIL-STD-202, Method 201
- Insulation Resistance: Greater than 10,000 ohms
- Resistance to Soldering Heat: MIL-STD-202, Method 210, Condition D
- Materials Body: Advanced High Temperature Substrate
- Materials Terminations: 100% Tin over Nickel over Copper
- Element Cover Coat: Conformal Coating
- Interrupting Rating: Varies by amperage (see datasheet)
- Nominal Voltage Rating: 125V
- Resistance: Varies by amperage (see datasheet)
- Opening Time: Varies by amperage (see datasheet)
- Power Dissipation: Varies by amperage (see datasheet)
Buy the 0466.125NRHF LITTELFUSE Fast-Acting Fuse | myMectronic
Securely purchase the LITTELFUSE 0466.125NRHF fuse and ensure reliable circuit protection for your applications.
Buy Now
Frequently Asked Questions
Where can I buy Littelfuse 0466125NRHF?
You can click on the BUY or RFQ button to purchase 0466125NRHF from an authorized Littelfuse distributor.
How do I troubleshoot issues or seek technical support for part 0466125NRHF?
You can download the 0466125NRHF datasheet or visit the Littelfuse website for support.
Who is the manufacturer of 0466125NRHF?
Littelfuse
