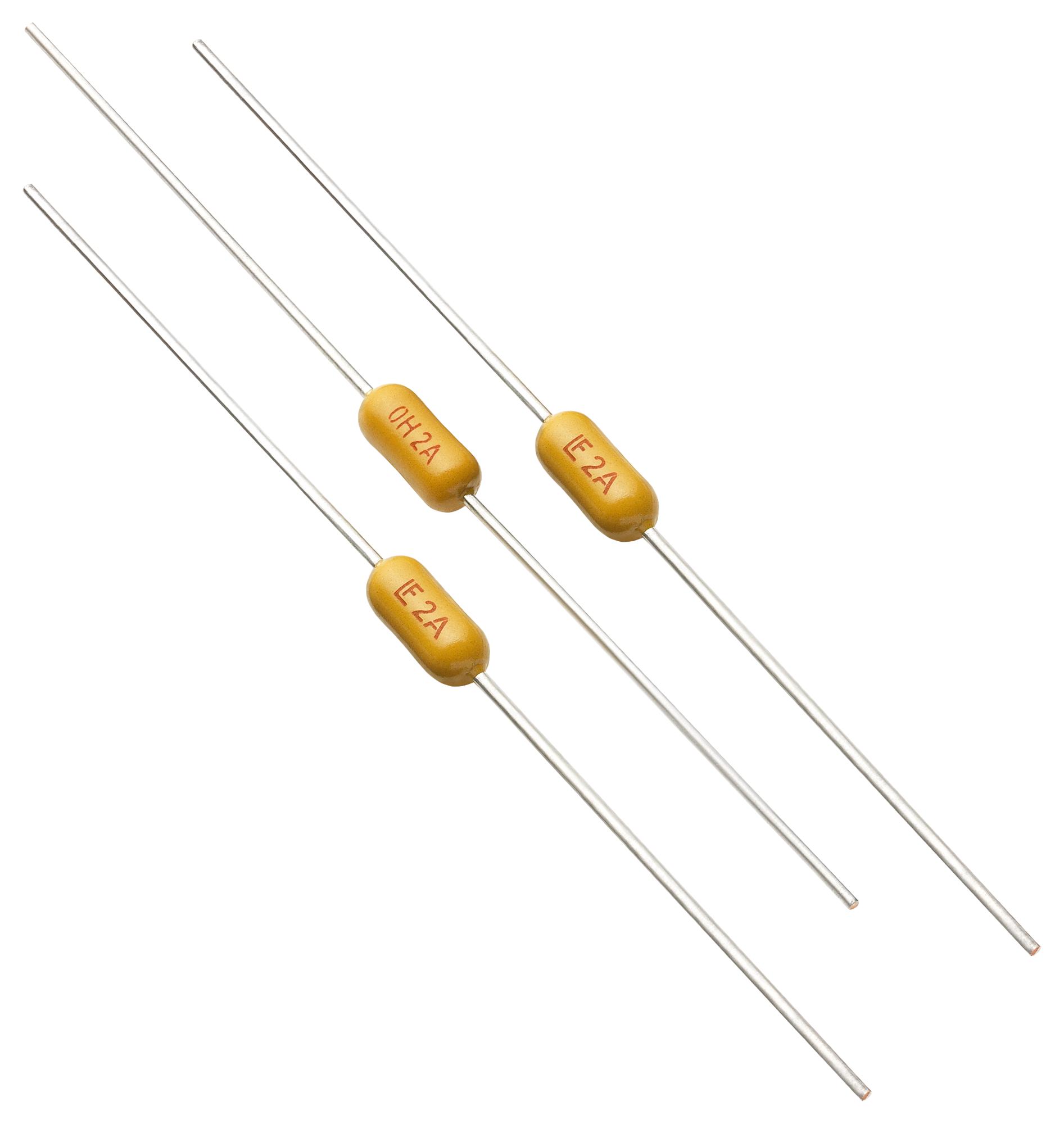

Littelfuse 0521002YAT1L Automotive Fuse
The PICO 11 521 Series is a very fast-acting, space-saving fuse designed for automotive and space-constrained electronic applications. It features RoHS compliance, wide operating temperature range, and is AEC-Q200 qualified, making it suitable for vehicle battery management systems and secondary protection. The fuse, encased in epoxy-coated, encapsulated body with tin-coated copper leads, withstands vibration, thermal shocks, and high temperatures. Its compact design ensures reliable overcurrent protection in demanding environments, meeting stringent industry standards for quality and safety.
Littelfuse 0521002YAT1L Automotive Fuse Specifications:
- Body: Encapsulated, Epoxy-Coated
- Lead Material: Tin-Coated Copper
- Temperature Range: -55°C to +126°C (consider re-rating)
- Operating Voltage: 75 VDC
- Ampere Rating: 2A
- Opening Time: 4 hours at 2A, Min; 1 second at 200%
- Resistance: 0.0473 Ohms at 8 ms opening time
- Flammability: UL 94V-0 epoxy coating
- Dimensions: Body length approximately 52.4 mm (2.062 inches)
- Vibration Resistance: 10-2000 Hz, 20 minutes at 5g
- Thermal Shock: -55°C to 125°C with 5-minute transitions
- Soldering: Max 260°C, recommended wave and manual soldering parameters
- Certifications: AEC-Q200 qualified, UL V-0 flammability rating
Buy the Littelfuse 0521002YAT1L – Reliable Automotive Fuse for Industrial Applications
Purchase Littelfuse 0521002YAT1L online now for reliable, fast-acting overcurrent protection in automotive and industrial systems. Its compact size and high-quality design ensure safety and durability under harsh conditions. Perfect for space-limited applications, this fuse meets industry standards including AEC-Q200 qualification, UL flammability requirements, and vibration resistance. Whether used in vehicle battery management, secondary protection, or electronic circuit safeguarding, this fuse provides efficient, consistent performance. Buy it now for long-lasting, dependable protection.
Get Littelfuse 0521002YAT1L today—built for automotive electronics and space-constrained protection.
Frequently Asked Questions
Where can I buy Littelfuse 0521002YAT1L?
You can click on the BUY or RFQ button to purchase 0521002YAT1L from an authorized Littelfuse distributor.
How do I troubleshoot issues or seek technical support for part 0521002YAT1L?
You can download the 0521002YAT1L datasheet or visit the Littelfuse website for support.
Who is the manufacturer of 0521002YAT1L?
Littelfuse
