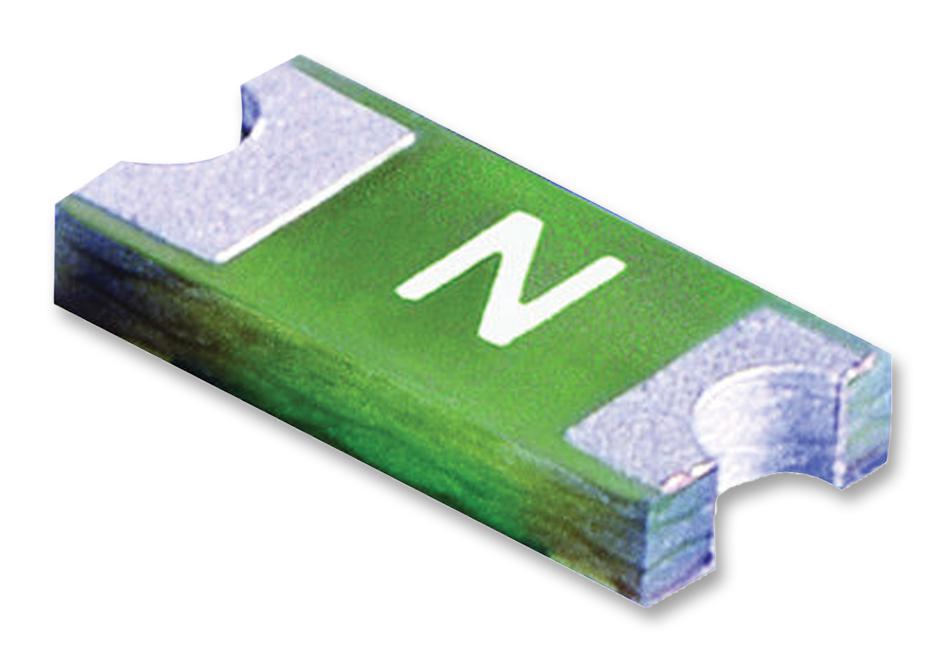

Littelfuse 0466200NR Fast-Acting Surface Mount Fuse
The Littelfuse 466 Series Fast-Acting Surface Mount Fuse (SMF) is a compact, thin-film device ideal for secondary protection in space-constrained applications such as cell phones, DVD players, battery packs, and digital cameras. This 1206 size fuse is 100% lead-free and compliant with the RoHS directive, offering reliable protection with minimal impact on device size. Halogen-free versions are also available, catering to environmentally conscious designs. The fuse features an alloy-based element, a conformal coating for resistance to cleaning profiles, and marking for easy identification of amperage rating. Its low profile and flat top surface are optimized for pick-and-place operations, making it suitable for automated assembly processes.
Littelfuse 0466200NR Fast-Acting Surface Mount Fuse Specifications:
- Body: Advanced High Temperature Substrate
- Terminations: 100% Tin over Nickel over Copper
- Element Cover Coat: Conformal Coating (0.026" ± 0.005")
- Operating Temperature: – 55 [O] C to 90 [O] C
- Thermal Shock: Withstands 5 cycles of –55 [O] C to 125 [O] C
- Humidity: MIL-STD-202F, Method 103B, Condition D
- Insulation Resistance: Greater than 10,000 ohms (After Opening)
- Resistance to Vibration: Per MIL-STD-202F, Method 201A, Condition D
- Ampere Range: 125mA - 5A
- Nominal Voltage Rating: 125V
- Interrupting Rating: 50A @125 V AC/DC
- Opening Time at 25 [O] C: 100% 4 hours, Minimum; 200% 5 sec., Maximum; 300% 0.2 sec., Maximum
- Typical Voltage Drop: 0.0691 mV
- Typical Power Dissipation: 0.0792 W
Buy the 0466.200NR LITTELFUSE Fast-Acting Surface Mount Fuse | myMectronic
Securely purchase the LITTELFUSE 0466.200NR Fast-Acting Surface Mount Fuse online for reliable protection in your electronic designs.
Buy Now
Frequently Asked Questions
Where can I buy Littelfuse 0466200NR?
You can click on the BUY or RFQ button to purchase 0466200NR from an authorized Littelfuse distributor.
How do I troubleshoot issues or seek technical support for part 0466200NR?
You can download the 0466200NR datasheet or visit the Littelfuse website for support.
Who is the manufacturer of 0466200NR?
Littelfuse
