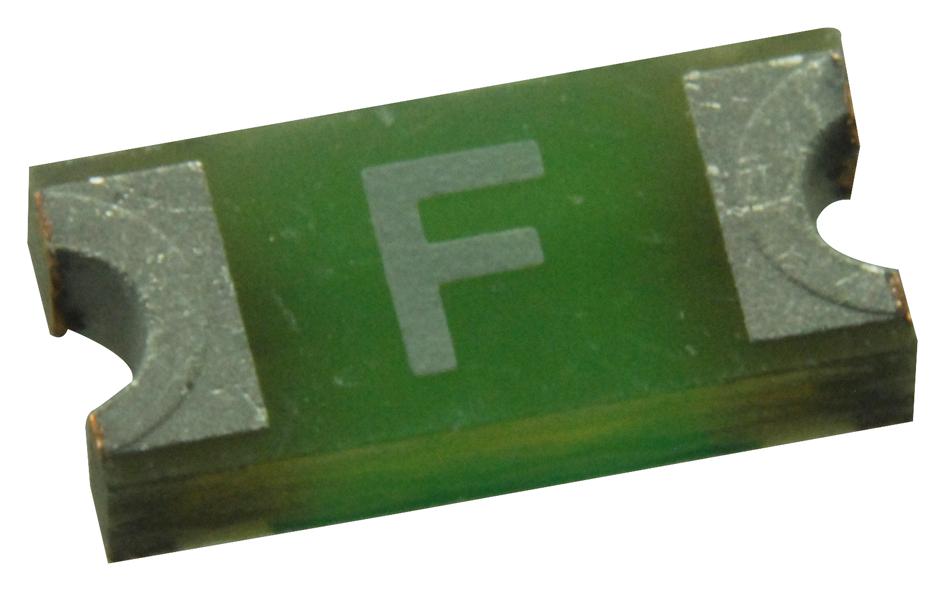

Littelfuse 0466500NRHF Fast-Acting Surface Mount Fuse
The Littelfuse 466 Series Fast-Acting Surface Mount Fuse (SMF) is a compact, thin-film device specifically engineered for secondary circuit protection in applications where space is limited, such as hand-held portable electronic devices. This series is designed to be 100% lead-free and meets the requirements of the RoHS directive, offering an environmentally conscious solution. The availability of halogen-free versions (identified by the “HF” suffix) further enhances its appeal. The fuse's construction incorporates an alloy-based element cover coating, providing superior inrush withstand characteristics and allowing for easy amperage rating identification. Its low profile and flat top surface facilitate pick-and-place operations, making it ideal for automated assembly processes. Typical applications include cell phones, DVD players, battery packs, hard disk drives, and digital cameras.
Littelfuse 0466500NRHF Fast-Acting Surface Mount Fuse Specifications:
- Agency Approvals: E10480 (.125A - 5A), 29862 (.125A - 5A)
- Operating Temperature: -55°C to 90°C
- Thermal Shock: Withstands 5 cycles of –55°C to 125°C
- Humidity: MIL-STD-202, Method 103, Condition D
- Vibration: MIL-STD-202, Method 201
- Insulation Resistance: Greater than 10,000 ohms
- Resistance to Soldering Heat: MIL-STD-202, Method 210, Condition D
- Materials Body: Advanced High Temperature Substrate
- Materials Terminations: 100% Tin over Nickel over Copper
- Element Cover Coat: Conformal Coating
- Interrupting Rating: See Electrical Specifications table
- Nominal Voltage Rating: See Electrical Specifications table
- Resistance: See Electrical Specifications table
- Opening Time: Measured at 10% of rated current, 25ºC
- I[2] t: Measured at rated voltage
- Typical Applications: Cell phones, DVD players, battery packs, hard disk drives, digital cameras
Buy the 0466.500NRHF LITTELFUSE Fast-Acting Surface Mount Fuse | myMectronic
Purchase the LITTELFUSE 0466.500NRHF Fast-Acting Surface Mount Fuse securely and reliably online.
Buy Now
Frequently Asked Questions
Where can I buy Littelfuse 0466500NRHF?
You can click on the BUY or RFQ button to purchase 0466500NRHF from an authorized Littelfuse distributor.
How do I troubleshoot issues or seek technical support for part 0466500NRHF?
You can download the 0466500NRHF datasheet or visit the Littelfuse website for support.
Who is the manufacturer of 0466500NRHF?
Littelfuse
