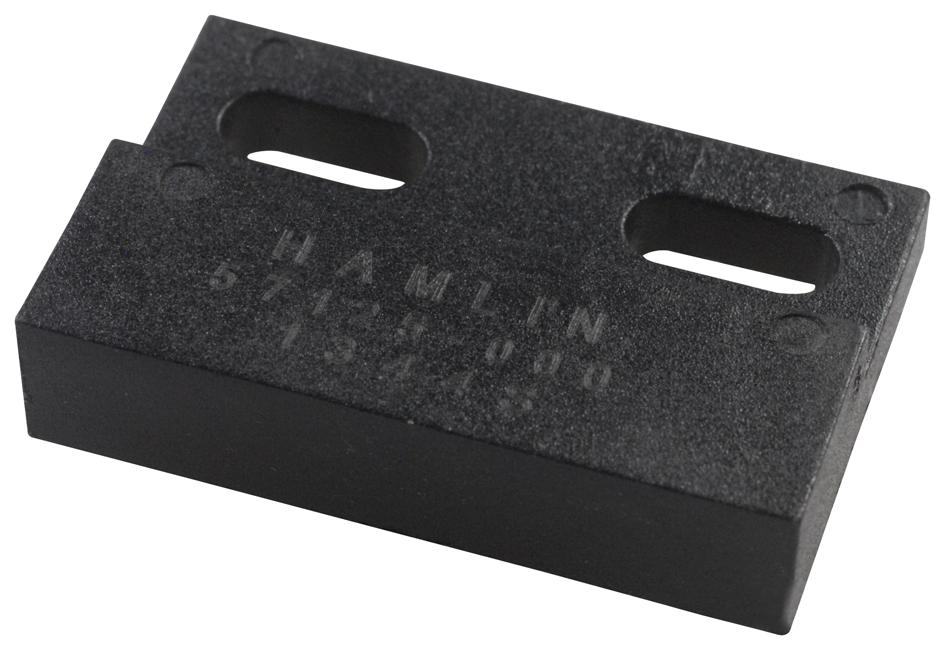

Littelfuse 57125000 Magnetically Operated Proximity Sensor
The Littelfuse 57125-000 is a magnetically operated proximity sensor designed for robust industrial applications. Its hermetically sealed contacts ensure reliable operation even in harsh environments where contamination is a concern. The sensor's design allows for screw-down or adhesive mounting, providing flexibility in installation. It is suitable for position and limit sensing, security systems, and linear actuators, offering a dependable solution for various automation and control needs. The sensor operates through non-ferrous materials like wood, plastic, or aluminum.
Littelfuse 57125000 Magnetically Operated Proximity Sensor Specifications:
- Contact Type: Normally Open/Normally Closed
- Max Power (Watt): 10
- Max Switching Voltage (Vdc): 300
- Min Breakdown Voltage (Vdc): 200
- Max Switching Current (A): 0.5
- Max Carry Current (A): 1.5
- Contact Resistance (Ω): 0.2
- Insulation Resistance (Ω): 10
- Typical Capacitance (pF): 0.3
- Operating Temperature (°C): -40 to +105
- Storage Temperature (°C): -65 to +105
- Operate Time (ms): 1.0
- Release Time (ms): 1.0
- Shock Resistance (G): 100
- Vibration Resistance (G): 30
- Activate Distance (in): 0.315
- Activate Distance (mm): 8.0
- Connector Type: Molex SL or equivalent
