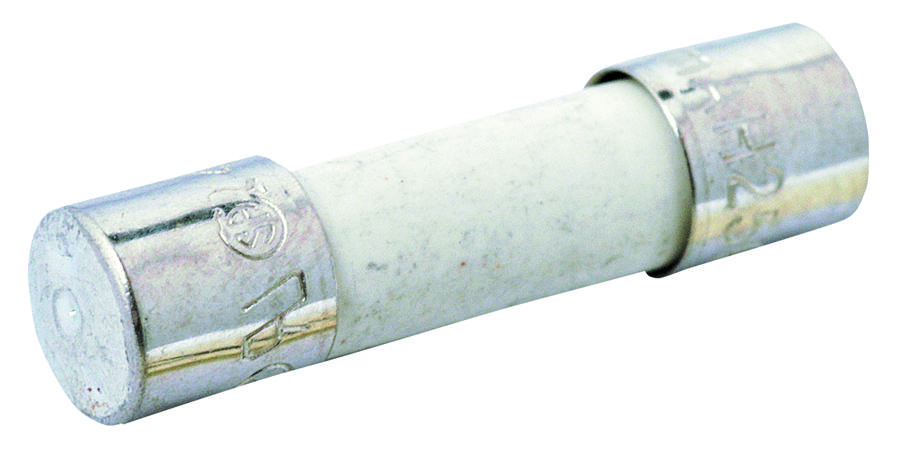

Littelfuse 0477005MXP Surge Fuse
The Slo-Blo 477 series surge withstanding time-lag fuse features a ceramic body with nickel-plated brass end caps, suitable for high-energy and power-efficient applications. Designed to meet IEC standards, it complies with IEC 60127-2, sheet 5, for time-lag fuses. The fuse operates within a temperature range of -55°C to 125°C and is available in cartridge and axial lead formats with various dimensions. Ideal for safety and industrial applications.
Littelfuse 0477005MXP Surge Fuse Specifications:
- Body Material: Ceramic
- End Caps: Nickel-plated brass
- Rated Voltage: 400Vdc/500Vac
- Size: 5x20 mm
- Temperature Range: -55°C to +125°C
- Operation: Time-lag (Slo-Blo®)
- Standards: IEC 60127-2, sheet 5
- Certification: RoHS compliant, lead-free
- Interruption Rating: Up to 600Vac with UL witnessed ratings for 0.5A to 5A
- Operating Temperature: -55°C to +125°C
- Lead Material: Tin-plated copper
- Impact Resistance: Meets MIL-STD-202G
Buy the Littelfuse Series 477 Surge Fuses: 0477005MXP
Purchase the Littelfuse Series 477 surge withstanding fuse online now for reliable surge protection in power-electronic systems. Crafted with a ceramic body and nickel-plated brass caps, this high-energy fuse is designed for durability and thermal stability, operating efficiently between -55°C and 125°C. Suitable for industrial and safety-critical applications, it conforms to IEC standards, ensuring compliance worldwide. Available in various sizes including 5x20mm, it offers excellent surge withstand capability and robust mechanical strength. Secure your power management today with fast online ordering.
Order your Littelfuse Series 477 surge withstanding time-lag fuse today and ensure your safety and power efficiency in industrial applications.
Frequently Asked Questions
Where can I buy Littelfuse 0477005MXP?
You can click on the BUY or RFQ button to purchase 0477005MXP from an authorized Littelfuse distributor.
How do I troubleshoot issues or seek technical support for part 0477005MXP?
You can download the 0477005MXP datasheet or visit the Littelfuse website for support.
Who is the manufacturer of 0477005MXP?
Littelfuse
