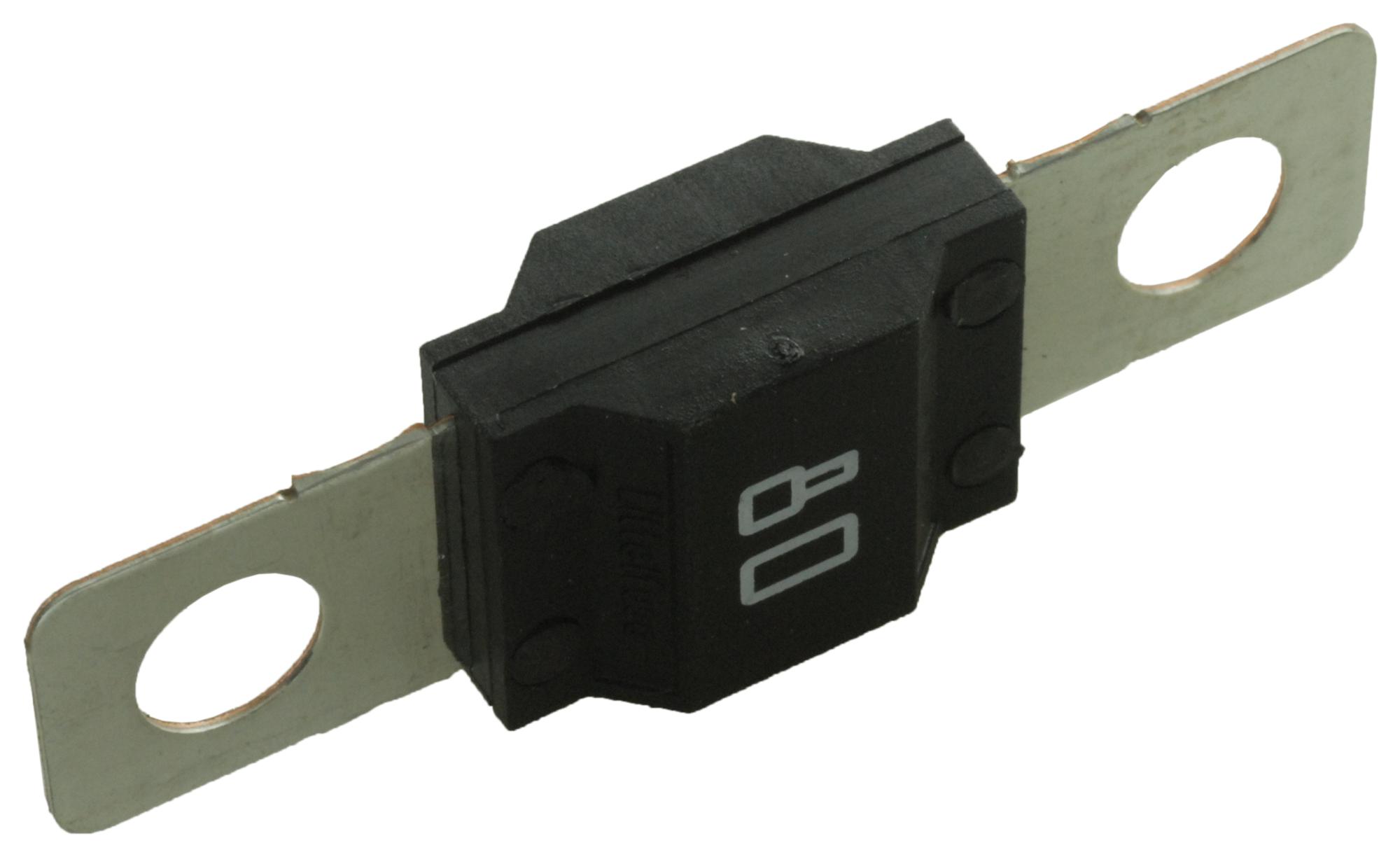

Littelfuse 0498080M MIDI Fuse
The 0498080M MIDI fuse features a black, glass-filled thermoplastic body and cover, with a tether for secure placement, designed for high-current wiring protection. It offers time-delay characteristics using diffusion pill technology and is mounted via an M5 threaded stud with hex nuts. Suitable for automotive and safety systems, this space-saving bolt-on fuse provides reliable circuit protection up to 200A at 32VDC, with an ambient temperature range of -40°C to +125°C, and recognized under UL components standards for safety and durability.
Littelfuse 0498080M MIDI Fuse Specifications:
- Electrical: Suitable for MIDI Fuses from 30 to 200 amps at 32VDC
- Body Material: Glass-filled thermoplastic, black
- Cover: Glass-filled thermoplastic with tether, black
- Mounting: M5 threaded stud and hex nuts
- Temperature Range: -40°C to +125°C
- Interrupting Rating: 1000A at 32 VDC
- Agency Approval: Recognized under UL components program, file number £71611
- Ambient Temp: -40°C to +125°C
Buy the Littelfuse Series MIDI Fuse: 0498080M
Enhance your electrical safety with the Littelfuse MIDI Fuse, part number 0498080M. Designed for high-current applications, it offers reliable time-delay protection with diffusion pill technology. Its durable black thermoplastic body and secure M5 mounting ensure easy installation in automotive, safety, and industrial circuits. Recognized under UL standards, this fuse supports up to 200 amperes at 32VDC, with a wide operating temperature range from -40°C to +125°C. Order online today for dependable circuit protection with quick delivery and excellent quality.
Order your Littelfuse Series MIDI 0498080M fuse today and ensure reliable high-current protection for your automotive and safety systems.
Frequently Asked Questions
Where can I buy Littelfuse 0498080M?
You can click on the BUY or RFQ button to purchase 0498080M from an authorized Littelfuse distributor.
How do I troubleshoot issues or seek technical support for part 0498080M?
You can download the 0498080M datasheet or visit the Littelfuse website for support.
Who is the manufacturer of 0498080M?
Littelfuse
