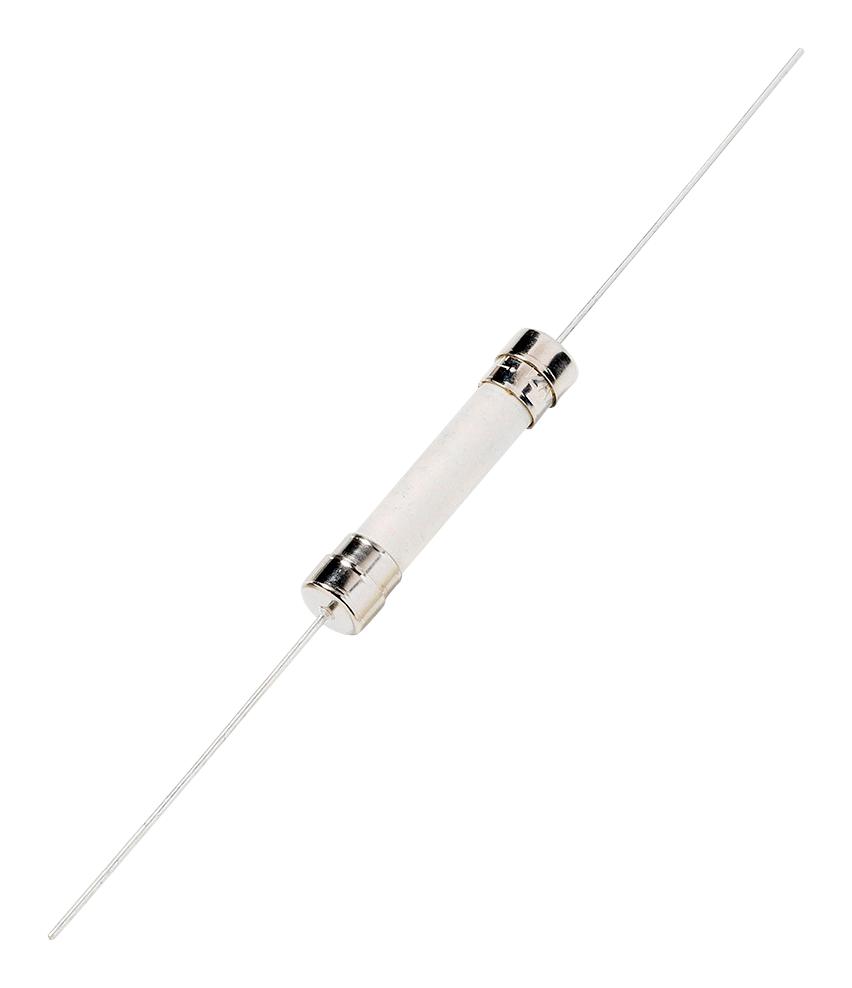

Littelfuse 0514010MXEP High-Voltage Ceramic Fuse
The Littelfuse 514 Series axial lead and cartridge fuses are 500VAC rated ceramic fuses designed for high-energy circuit protection in compact, versatile 6.3x32mm packages. These fast-acting fuses feature high interrupting ratings, are lead-free, halogen-free, RoHS compliant, and suitable for high power applications. They provide reliable overcurrent protection with excellent thermal stability, and are available in axial lead and cartridge styles, making them ideal for industrial and electronic equipment requiring robust circuit safeguarding.
Littelfuse 0514010MXEP High-Voltage Ceramic Fuse Specifications:
- Voltage Rating: 500VAC
- Body Material: Ceramic
- Lead Material: Tin-coated copper
- Lead Diameter: 1.02+0.06 mm (for 8-12.54A), 0.81+0.05 mm (for 1.6-6.3A)
- Lead Length: 6.3mm x 32mm
- Temperature Range: -55°C to +125°C
- Package Size: 6.3 x 32 mm
- Interrupting Rating: High, suitable for high energy applications
- Standards Compliance: RoHS, Halogen free
- Soldering Parameters: Wave soldering at 260°C max, hand soldering at 350°C for 5 sec
- Mounting: Axial lead or cartridge types
- Configuration: Lead-free, RoHS compliant, suitable for high power supplies
- Certification: Agency approvals as per standard
- Recommended Operation: 4A to 16A ratings depending on application
Buy the Littelfuse Series 514 High-Voltage Ceramic Fuses: 0514010MXEP
Secure your high-power electronic systems with the Littelfuse 514 Series ceramic fuses. Designed for robust circuit protection, these fast-acting fuses feature a compact 6.3x32mm ceramic body with high interrupting ratings. Suitable for high energy applications, they ensure your equipment’s safety while complying with RoHS regulations. Easy to install with axial lead and cartridge options, these fuses provide reliable and long-lasting overcurrent protection. Get your Littelfuse 514 Series fuse today online and safeguard your critical systems efficiently.
Buy Littelfuse 514 Series ceramic fuses now and experience unmatched reliability and high-energy circuit protection for your electronic and industrial applications.
Frequently Asked Questions
Where can I buy Littelfuse 0514010MXEP?
You can click on the BUY or RFQ button to purchase 0514010MXEP from an authorized Littelfuse distributor.
How do I troubleshoot issues or seek technical support for part 0514010MXEP?
You can download the 0514010MXEP datasheet or visit the Littelfuse website for support.
Who is the manufacturer of 0514010MXEP?
Littelfuse
