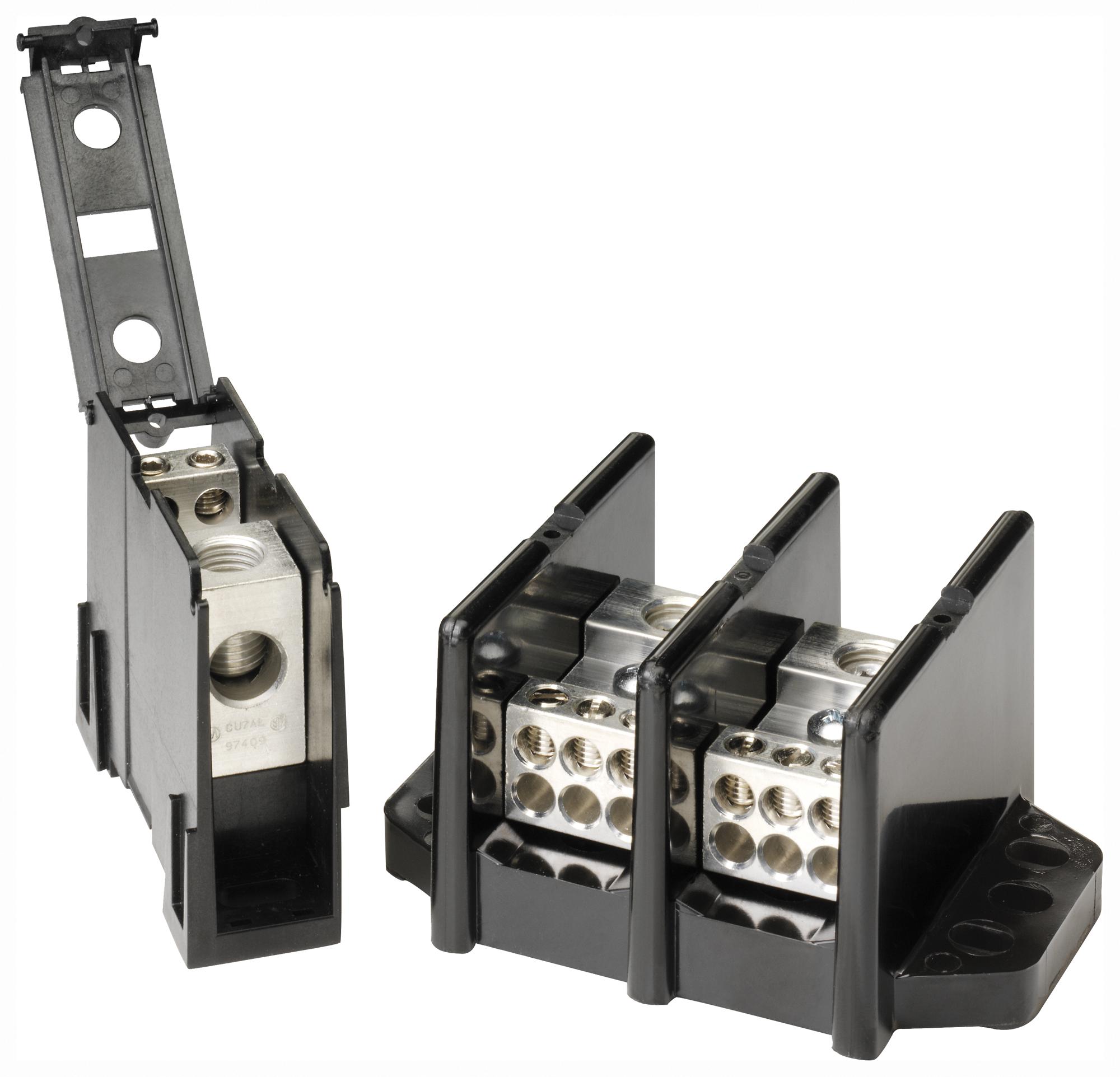

Littelfuse 0LCH1323Z Power Distribution Block
The product is a reliable power distribution and splicer block designed for industrial applications, offers safe cable splicing, and features optional covers for protection against shorting and accidental contact. Suitable for control panels, motor controls, and refrigeration systems, these blocks support multiple conductors and are rated for 600V with high current capacity. Made of phenolic or thermoplastic, with UL and CSA approvals, they provide a durable, RoHS-compliant solution for efficient power distribution in diverse industrial environments.
Littelfuse 0LCH1323Z Power Distribution Block Specifications:
- Voltage Rating: 600V
- Material: Phenolic rated at 150°C, Thermoplastic rated at 125°C
- Conductor Compatibility: Copper and Aluminum, tin plated
- Flammability Rating: UL94 V-0
- Approvals: UL Recognized, CSA Certified, UL Listed
- Environmental: RoHS compliant, Lead-free
- Current Rating: Based on NEC Table 310.16 using 75°C copper wire
- Connectivity: Supports solid and stranded conductors, with crimp-on sleeves for fine stranded conductors
- Dimensions: Vary depending on model, supporting multiple pole configurations
- Application: Suitable for control panels, motor controls, switchgear, and power distribution networks
Buy the Littelfuse OLCH1323Z – Reliable Power Distribution Block for Industrial Applications
Enhance your industrial electrical setup with the Littelfuse Power Distribution Block. Designed for safety, durability, and efficient power management, it features UL and CSA approvals. Its robust construction supports high current loads up to 600V and is suitable for control panels, motor controls, and refrigeration systems. Easy to install with support for multiple conductors, optional safety covers ensure protection against accidental shorting and contact. Order online today to streamline your power distribution needs with this reliable, RoHS-compliant solution.
Buy Littelfuse OLCH1323Z now and experience unmatched reliability and performance in power distribution and cable splicing.
Frequently Asked Questions
Where can I buy Littelfuse 0LCH1323Z?
You can click on the BUY or RFQ button to purchase 0LCH1323Z from an authorized Littelfuse distributor.
How do I troubleshoot issues or seek technical support for part 0LCH1323Z?
You can download the 0LCH1323Z datasheet or visit the Littelfuse website for support.
Who is the manufacturer of 0LCH1323Z?
Littelfuse
