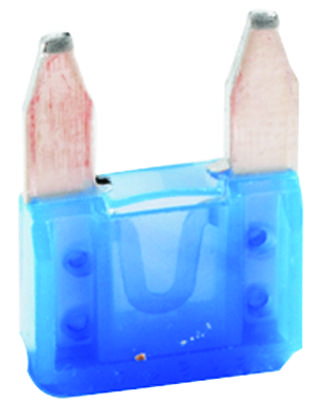

Littelfuse 0297015WXNV Mini Blade Fuse
The LITTELFUSE MINI Blade Fuse is rapidly becoming the new standard for vehicle circuit protection. Its miniature design allows for more circuits to be protected while utilizing less space, and its ability to cope with high temperatures in adverse environments makes it the recommended choice for protection. It meets SAE J2077, ISO 8820, and UL 248 standards. Available in various current ratings, these fuses provide reliable circuit protection for automotive applications.
Littelfuse 0297015WXNV Mini Blade Fuse Specifications:
- Interrupting_Rating: 1000A @ 32 VDC
- Voltage_Rating: 32 VDC
- Operating_Temperature_Range: -40˚C to +125˚C
- Terminals: Ag plated
- Packaging_Size_0297xxx.LXN: 50
- Packaging_Size_0297xxx.WXNV: 3000
- Meets_Standards: SAE J2077, ISO 8820, UL 248
- Time_Current_Characteristics_110_Rating: 360,000 s
- Time_Current_Characteristics_135_Rating: 0.75 s / 600 s
- Time_Current_Characteristics_200_Rating: 0.15 s / 5 s
- Time_Current_Characteristics_350_Rating: 0.080 s / 0.250 s
- Time_Current_Characteristics_600_Rating: 0.030 s / 0.100 s
- Current_Rating_0297002: 2 A
- Voltage_Drop_0297002: 171 mV
- Cold_Resistance_0297002: 55.60 m Ω
- A_squared_s_0297002: 2.8 A²s
- Current_Rating_0297003: 3 A
- Voltage_Drop_0297003: 153 mV
- Cold_Resistance_0297003: 33.75 m Ω
- A_squared_s_0297003: 9.4 A²s
- Current_Rating_0297004: 4 A
- Voltage_Drop_0297004: 121 mV
- Cold_Resistance_0297004: 23.48 m Ω
- A_squared_s_0297004: 17 A²s
- Current_Rating_0297005: 5 A
- Voltage_Drop_0297005: 129 mV
- Cold_Resistance_0297005: 17.75 m Ω
- A_squared_s_0297005: 25 A²s
- Current_Rating_029707.5: 7.5 A
- Voltage_Drop_029707.5: 135 mV
- Cold_Resistance_029707.5: 10.85 m Ω
- A_squared_s_029707.5: 68 A²s
- Current_Rating_0297010: 10 A
- Voltage_Drop_0297010: 108 mV
- Cold_Resistance_0297010: 7.42 m Ω
- A_squared_s_0297010: 93 A²s
- Current_Rating_0297015: 15 A
- Voltage_Drop_0297015: 98 mV
- Cold_Resistance_0297015: 4.58 m Ω
- A_squared_s_0297015: 270 A²s
- Current_Rating_0297020: 20 A
- Voltage_Drop_0297020: 96 mV
- Cold_Resistance_0297020: 3.21 m Ω
- A_squared_s_0297020: 380 A²s
- Current_Rating_0297025: 25 A
- Voltage_Drop_0297025: 86 mV
- Cold_Resistance_0297025: 2.36 m Ω
- A_squared_s_0297025: 625 A²s
- Current_Rating_0297030: 30 A
- Voltage_Drop_0297030: 87 mV
- Cold_Resistance_0297030: 1.85 m Ω
- A_squared_s_0297030: 1130 A²s
