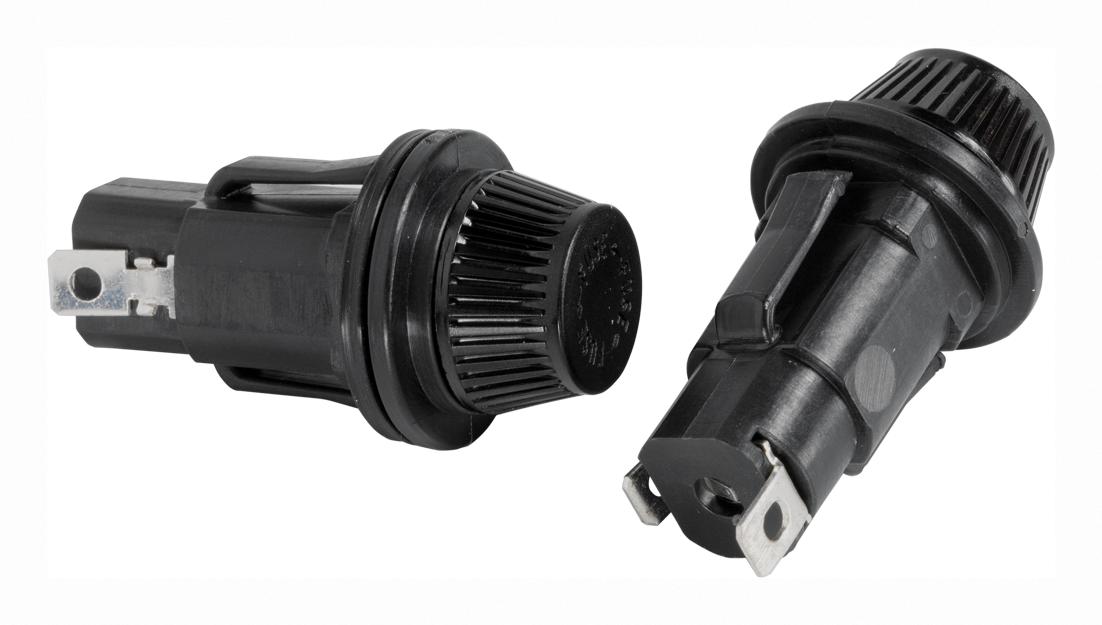

Littelfuse 05720007L Fuse Holder
Littelfuse 572 series panel mount fuse holders provide quick, tool-free installation with snap-mount design for Class CC and Midget fuses. They feature a rejection feature to prevent lower-rated fuses, are available in watertight versions suitable for wash-down environments, and come with pre-assembled wire leads to reduce assembly time. Rated for 600V AC/DC, with a 30A current capacity, these fuse holders incorporate durable dielectric materials, tin-plated brass terminals, and UL and CSA certifications, making them ideal for industrial, food processing, and commercial applications requiring reliable circuit protection and easy mounting.
Littelfuse 05720007L Fuse Holder Specifications:
- Voltage Rating: 600 Volts AC/DC
- Ampere Rating: 30 Amperes for Class CC and Midget
- SCCR Rating: 200,000 amperes - Class CC, 10,000 amperes - Midget
- Panel Thickness: 14 — 18 Gauge Standard, 14 — 22 Gauge Watertight 'P' versions
- Dielectric Strength: 4000 Volts
- Terminals: Tin-plated brass combination solder and quick-connect
- Molded Parts: Black thermoplastic, UL Rating 150°C
- Flammability Rating: UL 94VO
- Approvals: UL Recognized (File No. E14721), CSA Certified (File No. LR7316)
Buy the Littelfuse 05720007 U+2013 Reliable Fuse Holders for Industrial Applications
Order the Littelfuse fuse holder 05720007 today for secure, reliable, and tool-free installation suitable for Class CC and Midget fuses. Its snap-mount design simplifies panel mounting without tools or hardware, making installation quick and straightforward. The fuse holder features watertight versions for wash-down environments and pre-assembled leads to reduce assembly time. Rated at 600V AC/DC and 30A, with UL and CSA certifications, it ensures optimal circuit protection in industrial, manufacturing, and commercial settings. Get yours now for dependable performance.
Buy Littelfuse 05720007 now and experience unmatched reliability and easy tool-free mounting for industrial circuit protection.
Frequently Asked Questions
Where can I buy Littelfuse 05720007L?
You can click on the BUY or RFQ button to purchase 05720007L from an authorized Littelfuse distributor.
How do I troubleshoot issues or seek technical support for part 05720007L?
You can download the 05720007L datasheet or visit the Littelfuse website for support.
Who is the manufacturer of 05720007L?
Littelfuse
