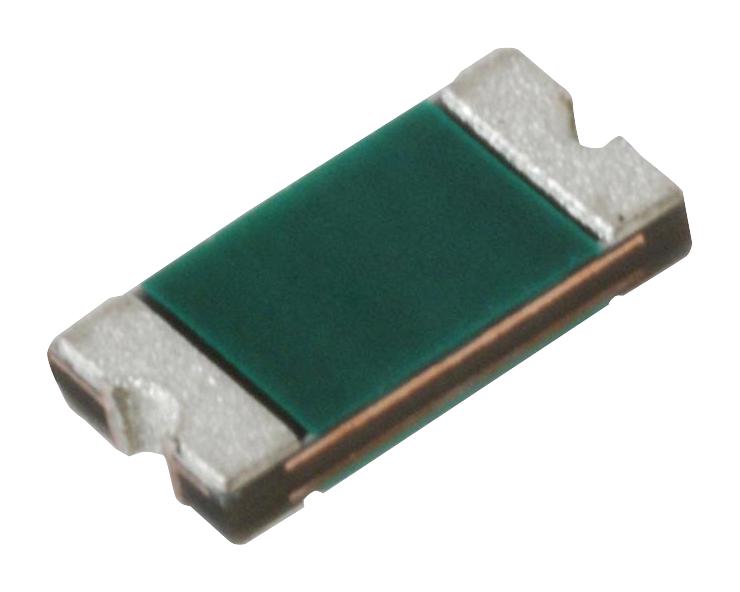

Littelfuse 1206L07516WR Resettable PTC Fuse
The Littelfuse 1206L Series PTC provides surface mount overcurrent protection for applications where space is at a premium and resettable protection is desired. These fuses are RoHS compliant, halogen-free, and feature a low profile design. They offer fast response to fault conditions and are compatible with high-current temperature solders, making them suitable for USB peripherals, mobile phones, disk drives, and other sensitive electronic devices. The resettable nature of the PTC fuse allows for recovery after a fault, minimizing downtime and maximizing system reliability.
Littelfuse 1206L07516WR Resettable PTC Fuse Specifications:
- Description: Provides surface mount overcurrent protection.
- Features: RoHS compliant, lead-free, low resistance, halogen-free, low-profile, fast response, compatible with high-current temperature solders, compact design.
- Applications: USB peripherals, mobile phones, disk drives, CD-ROMs, PDAs, game console port protection.
- Hold Current: 0.75 A
- Trip Current: 1.50 A
- Maximum Voltage: 16 Vdc
- Maximum Current: 10 A
- Typical Power Dissipation: 0.6 W
- Minimum Resistance: 0.20 Ω
- Maximum Resistance: 0.090 Ω
- Agency Approvals: E183209, R50119118
- Temperature Rerating: Refer to datasheet for details
- Soldering Parameters: Refer to datasheet for details
Buy the 1206L075/16WR Littelfuse Resettable PTC Fuse | myMectronic
Securely purchase the Littelfuse 1206L075/16WR resettable PTC fuse online for reliable overcurrent protection.
Buy Now
Frequently Asked Questions
Where can I buy Littelfuse 1206L07516WR?
You can click on the BUY or RFQ button to purchase 1206L07516WR from an authorized Littelfuse distributor.
How do I troubleshoot issues or seek technical support for part 1206L07516WR?
You can download the 1206L07516WR datasheet or visit the Littelfuse website for support.
Who is the manufacturer of 1206L07516WR?
Littelfuse
