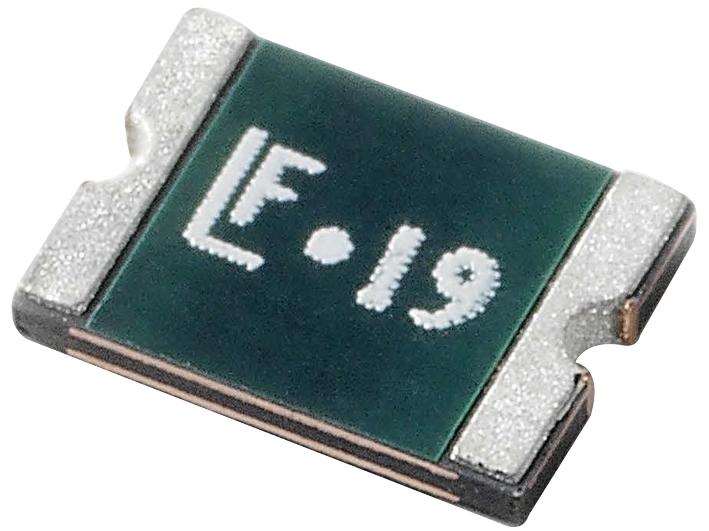

Littelfuse 1206L15012SLYR Low Rho Surface Mount PTC
Littelfuse Low Rho Surface Mount PPTC devices provide overcurrent protection for applications requiring ultra-low internal resistance, ultra-low voltage drop, and automatic resettable protection. This series allows for a higher hold current device in a smaller size and lower profile compared to standard PPTCs. They are UL recognized and TUV approved, with a maximum fault current of 50A, available in sizes from 0402 to 2920, and hold currents ranging from 100mA to 9A. These devices are suitable for LCD/LED HDTVs, USB peripherals, computer peripherals, Li-ion/Li-Polymer battery packs, digital cameras, smartphones, hard disk drives, tablet/notebook PCs, and game consoles.
Littelfuse 1206L15012SLYR Low Rho Surface Mount PTC Specifications:
- Agency Approvals: E183209, R50119118
- Maximum Hold Current: 1.50 A
- Maximum Trip Current: 3.00 A
- Maximum Voltage: 6 Vdc
- Maximum Fault Current: 40 A
- Typical Power Dissipation: 0.5 W
- Minimum Resistance: 0.150 Ω
- Maximum Resistance: 2.000 Ω
- Hold Current Range: 100mA to 9A
- Size Range: 0402 to 2920
- RoHS Compliant: Yes
- UL Recognized: Yes
- TUV Approved: Yes
Buy the 1206L150/12SLYR LITTELFUSE Low Rho Surface Mount PTC | myMectronic
Purchase Littelfuse 1206L150/12SLYR securely and reliably online.
Buy Now
Frequently Asked Questions
Where can I buy Littelfuse 1206L15012SLYR?
You can click on the BUY or RFQ button to purchase 1206L15012SLYR from an authorized Littelfuse distributor.
How do I troubleshoot issues or seek technical support for part 1206L15012SLYR?
You can download the 1206L15012SLYR datasheet or visit the Littelfuse website for support.
Who is the manufacturer of 1206L15012SLYR?
Littelfuse
