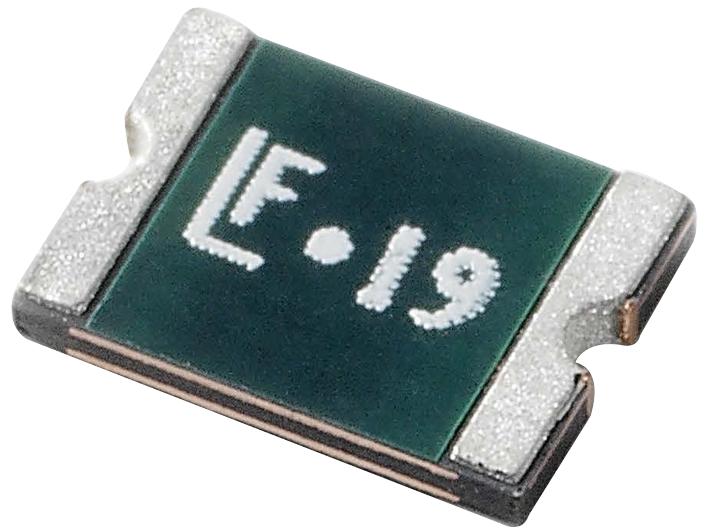

Littelfuse 1206L450SLWR Low Rho Surface Mount PTC
Littelfuse Low Rho Surface Mount PPTC devices provide overcurrent protection with ultra-low internal resistance and voltage drop. These resettable devices are UL recognized and TUV approved, suitable for applications like LCD/LED HDTVs, USB peripherals, Li-ion battery packs, and digital cameras. Available in sizes from 0402 to 2920, they offer a broad range of hold current ratings from 100mA to 9A, making them versatile for various electronic devices.
Littelfuse 1206L450SLWR Low Rho Surface Mount PTC Specifications:
- Maximum Hold Current (A): 4.50
- Maximum Trip Current (A): 9.00
- Maximum Voltage (Vdc): 6
- Maximum Fault Current (A): 50
- Maximum Power Dissipation (W): 0.8
- Minimum Resistance (Ω): 0.001
- Maximum Resistance (Ω): 22.50
- Agency Approvals: UL Recognized, TUV Approved
- Time-To-Trip Current (A): 2.00
- Time-To-Trip (Sec): 1.00
Buy the 1206L450SLWR LITTELFUSE Low Rho Surface Mount PTC | myMectronic
Purchase the Littelfuse 1206L450SLWR securely and reliably online.
Buy Now
Frequently Asked Questions
Where can I buy Littelfuse 1206L450SLWR?
You can click on the BUY or RFQ button to purchase 1206L450SLWR from an authorized Littelfuse distributor.
How do I troubleshoot issues or seek technical support for part 1206L450SLWR?
You can download the 1206L450SLWR datasheet or visit the Littelfuse website for support.
Who is the manufacturer of 1206L450SLWR?
Littelfuse
