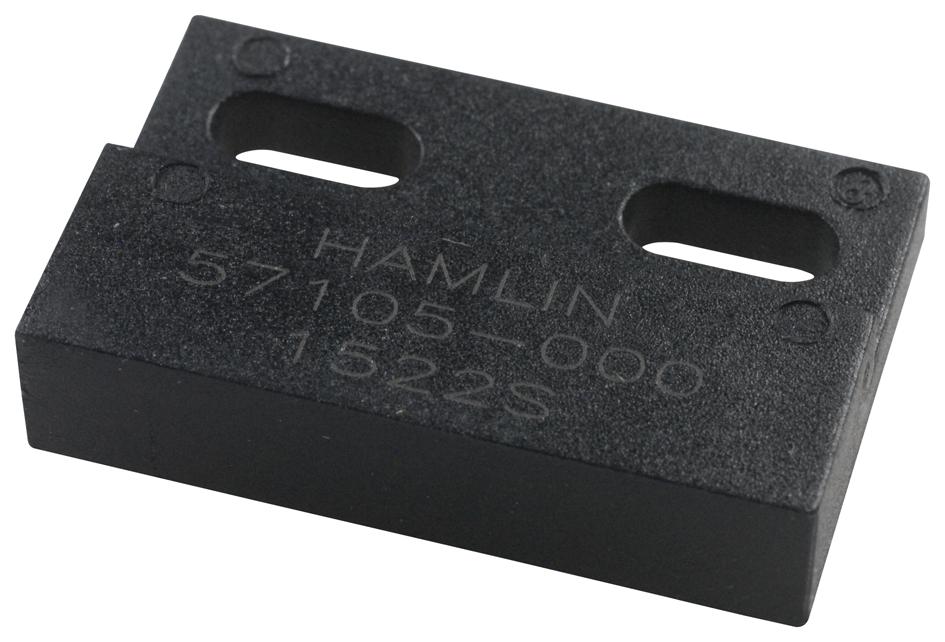

Littelfuse 57105000 Terminal Flange Connector
The LITTELFUSE 57105-000 terminal flange connector is a magnetically operated device designed for a variety of applications including security systems and linear actuators. It utilizes shrouded terminals that accept Molex materials, ensuring compatibility and ease of assembly. The connector's case design allows for both screw-down and adhesive mounting, providing flexibility in installation. Its hermetically sealed contacts offer reliable operation even in challenging environments, continuing to function long after optical technologies fail due to contamination. The connector is compatible with Molex SL connectors, requiring separate purchase of housing and pins.
Littelfuse 57105000 Terminal Flange Connector Specifications:
- File E61760(N): 59105 Terminal Flange
- Switch Type: Magnetically operated
- Power Watt - max: 10
- Voltage Switching Vdc - max: 200
- Breakdown Vdc - min: 250
- Current Switching A - max: 0.5
- Carry A - max: 1.2
- Resistance Contact Initial Ω - max: 0.2
- Insulation Ω - min: 1010
- Capacitance Contact pF - typ: 0.3
- Temperature Operating °C: -40 to +105
- Temperature Storage °C: -65 to +105
- Time Operate ms - max: 1.0
- Time Release ms - max: 1.0
- Shock 11ms 1⁄2 sine G - max: 100
- Vibration 50-2000 Hz G - max: 30
- Activate Distance (in): 12-18, 17-23, 22-28, 27-33
- Activate Distance (mm): 0.354, 0.335, 0.295, 0.295
