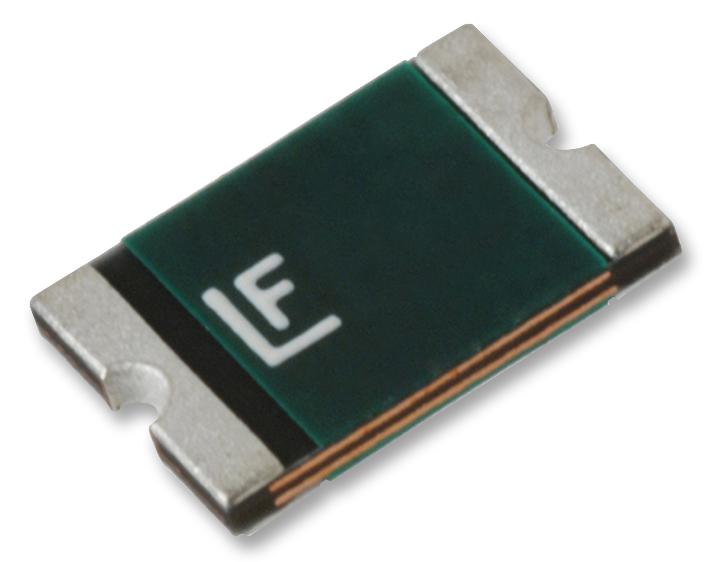

Littelfuse 1812L150ZR Resettable PTC Device
The Littelfuse 1812L Series PTC is a resettable overcurrent protection device designed for surface mount applications. It provides a convenient and reliable solution for protecting sensitive circuits from damage caused by excessive current. The device is halogen-free and features resettable functionality, allowing it to recover from overcurrent events without requiring replacement. Typical applications include motherboards, peripherals, and other electronic devices where resettable protection is desired.
Littelfuse 1812L150ZR Resettable PTC Device Specifications:
- Description: Provides surface mount overcurrent protection with resettable functionality.
- Features: Halogen-free, resettable, designed for temperature solders.
- Applications: Motherboards, peripherals.
- Hold Current: 1.50 A (at 23°C)
- Trip Current: 3.00 A
- Max Voltage: 30 Vdc
- Max Current: 1.00 A
- Typical Power Dissipation: 0.8 W
- Time To Trip: 8 seconds
- Minimum Resistance: 0.04 Ω
- Maximum Resistance: 0.12 Ω
- Agency Approvals: E183209, R50119118
- Operating Temperature: -40°C to +85°C
- Maximum Device Surface Temperature: 125°C
- Passive Aging: +85°C, 1000 hours, -/+5% resistance change
- Humidity Aging: +85°C, 85% RH, 1000 hours, -/+5% resistance change
- Thermal Shock: MIL–STD–202, Method 107G, -30% resistance change
- Solvent Resistance: MIL–STD–202, Method 215, No change
- Vibration: MIL–STD–883C, Method 2007.1, Condition A, No change
- Moisture Sensitivity Level: Level 1
