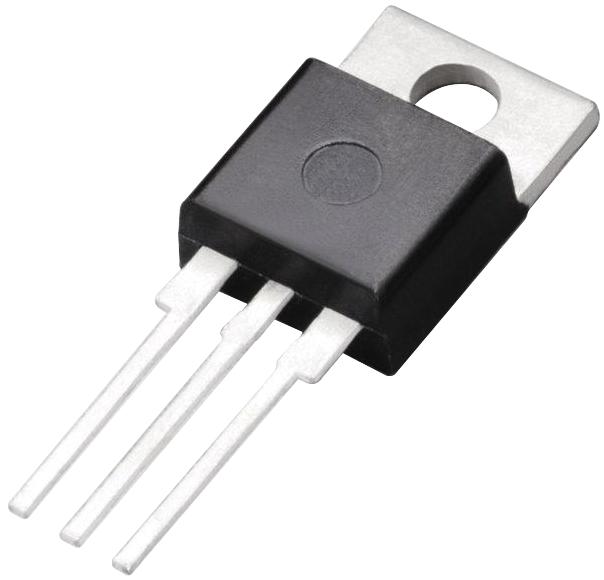

Littelfuse 2N6394G Silicon Controlled Rectifier
The 2N6394 series consists of silicon controlled rectifiers designed for half-wave AC control applications such as motor, heating, and power supply controls. Featuring glass passivated junctions with center gate geometry, these devices offer greater parameter uniformity and stability. They are rugged with small, thermowatt construction, providing low thermal resistance and high heat dissipation for durability. Capable of blocking voltages up to 800 V, these Pb-free SCRs support reliable high-voltage switching with a maximum RMS current of 12 A and surge currents up to 100 A, suitable for demanding industrial use.
Littelfuse 2N6394G Silicon Controlled Rectifier Specifications:
- Blocking Voltage: up to 800 V
- Peak Repetitive Off-State Voltage: 2N6394 50 V, 2N6395 100 V, 2N6397 400 V, 2N6399 800 V
- On-State RMS Current: 12 A (at 90°C)
- Peak Surge Current: 100 A (1/2 cycle, 60 Hz)
- Gate Peak Power: 20 W
- Gate Peak Current: 2.0 A
- Operating Junction Temperature: -40°C to +125°C
- Storage Temperature: -40°C to +150°C
- Thermal Resistance, Junction-to-Case: 2.0 °C/W
- Maximum Lead Soldering Temperature: 260°C
Buy the ON Semiconductor Series 2N6394 Silicon Controlled Rectifier: 2N6394G
Enhance your power control systems with the high-performance 2N6394 series SCRs, offering up to 800 V blocking voltage and 12 A RMS current. These rugged devices feature glass passivated junctions for greater stability and uniformity, ideal for motor controls, heating, and power supply applications. With low thermal resistance, they ensure efficient heat dissipation and durability in demanding environments. Reliable and Pb-free, these SCRs support high surge currents and withstand operating temperatures from -40°C to +125°C, providing dependable performance for industrial automation and energy management projects.
Order your ON Semiconductor Series 2N6394G silicon controlled rectifier today and ensure reliable high-voltage switching for industrial applications.
Frequently Asked Questions
Where can I buy Littelfuse 2N6394G?
You can click on the BUY or RFQ button to purchase 2N6394G from an authorized Littelfuse distributor.
How do I troubleshoot issues or seek technical support for part 2N6394G?
You can download the 2N6394G datasheet or visit the Littelfuse website for support.
Who is the manufacturer of 2N6394G?
Littelfuse
