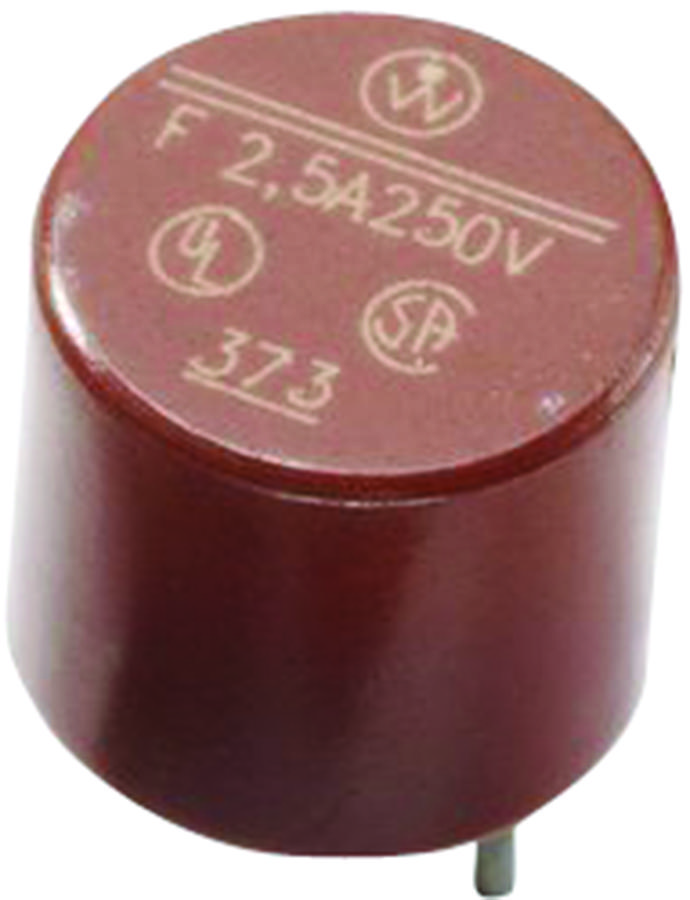

Littelfuse 37015000000 TR5 Fuse
The 370 Series TR5 Fuse is a compact, fast-acting fuse rated at 250V, suitable for power supplies and industrial controllers. It is designed for reduced PCB space, vibration resistance, and compliance with RoHS, halogen-free, and lead-free standards. Available from 0.040A to 6.3A, it features a shock-safe casing, low internal resistance, and can be used as a direct solder or plug-in component. Certified to IEC 60127-3, this fuse provides reliable electrical protection in various electronic applications, ensuring safety and performance.
Littelfuse 37015000000 TR5 Fuse Specifications:
- Voltage Rating: 250 V
- Current Range: 0.040A to 6.3A
- Rating/Type: Fast-Acting, TR5 Series
- Standards: IEC 60127-3
- Mounting: Direct solder or plug-in
- Insulation Material: Thermoplastic, UL 94-0
- Operating Temperature: -40°C to +85°C
- Soldering Temperature: 260°C for <3s (Wave), 350°C for 5s (Iron)
- Lead Material: Copper, Tin-plated
- Physical Size: Sub-miniature, PCB space-saving design
- Features: Vibration resistant, shock-safe casing, RoHS compliant, halogen-free, lead-free
Buy the Littelfuse Series 370 TR5 Fuse: 37015000000
Order the Littelfuse TR5 Fuse series online today for reliable, fast-acting electrical protection in your power supplies, controllers, and industrial applications. These compact fuses are RoHS compliant, halogen-free, and designed to save PCB space while providing vibration resistance and shock-safe casing. With a rated voltage of 250V and current options from 0.040A to 6.3A, they meet IEC standards. Crafted for durability and performance, these fuses are perfect for sensitive electronics requiring precise circuit protection and easy installation, ensuring your devices operate safely and efficiently.
Get Littelfuse 37015000000 today—built for precision, reliability, and long-lasting durability in electronic protection.
Frequently Asked Questions
Where can I buy Littelfuse 37015000000?
You can click on the BUY or RFQ button to purchase 37015000000 from an authorized Littelfuse distributor.
How do I troubleshoot issues or seek technical support for part 37015000000?
You can download the 37015000000 datasheet or visit the Littelfuse website for support.
Who is the manufacturer of 37015000000?
Littelfuse
