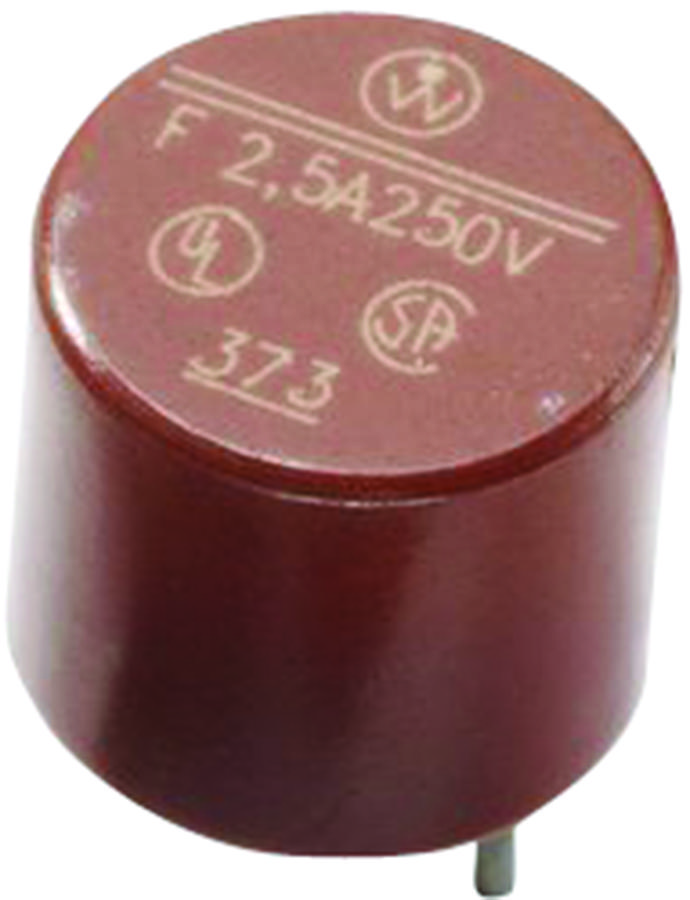

Littelfuse 37312500410 Radial Lead Fuse
The 373 Series TR5 fast-acting radial lead fuses are rated for 250V and designed in compliance with UL 248-14. Suitable for applications such as battery chargers, power supplies, consumer electronics, and industrial controllers, these fuses feature low internal resistance, vibration resistance, and are lead-free and halogen-free. Available in various current ratings from 50mA to 10A, they come with different lead configurations including long and short leads, and are mounted via direct soldering or plug-in versions. They are built with thermoplastic bases and copper, tin-plated round pins, operating efficiently across temperatures from -40°C to +85°C, with excellent solderability and environmental durability.
Littelfuse 37312500410 Radial Lead Fuse Specifications:
- Voltage Rating: 250V
- Current Range: 50mA to 10A
- Operating Temperature: -40°C to +85°C (de-rating applicable)
- Base/Cap Material: Brown thermoplastic, UL 94-0
- Pin Material: Copper, tin-plated
- Solderability: 95% at 350°C < 1s
- Climatic Category: -40°C/+85°C/21 days
- Lead Pull Strength: 10 N (IEC 60068-2-21)
- Soldering Heat Resistance: 260°C for 3 seconds
- Soldering Iron Temperature: 350°C +/- 5°C
- Solder Dwell Time: 10 seconds at 260°C
- Physical Size: Long leads (18.8mm), Short leads (4.3mm)
- Packaging: Tape & Ammopack (1,000 pcs), bulk short leads (200 pcs)
Buy the Littelfuse 37312500410 – Reliable Fast-Acting Fuse for Industrial Applications
Purchase the Littelfuse 373 Series radial lead fuse online today and ensure maximum protection for your electronic devices. Designed for high reliability, these fast-acting fuses feature UL 248-14 compliance and are suitable for circuit protection in industrial and consumer electronics. Available in various current ratings with options for long or short leads, these fuses are easy to install via soldering or plug-in options. Built with high-quality thermoplastic and tin-plated copper pins, they offer excellent durability, environmental resistance, and consistent performance across temperature ranges from -40°C to +85°C. Order now for fast delivery and reliable circuit protection.
Get Littelfuse 37312500410 today—built for precision and long-lasting durability, ideal for protecting power supplies and consumer electronics in harsh environments.
Frequently Asked Questions
Where can I buy Littelfuse 37312500410?
You can click on the BUY or RFQ button to purchase 37312500410 from an authorized Littelfuse distributor.
How do I troubleshoot issues or seek technical support for part 37312500410?
You can download the 37312500410 datasheet or visit the Littelfuse website for support.
Who is the manufacturer of 37312500410?
Littelfuse
