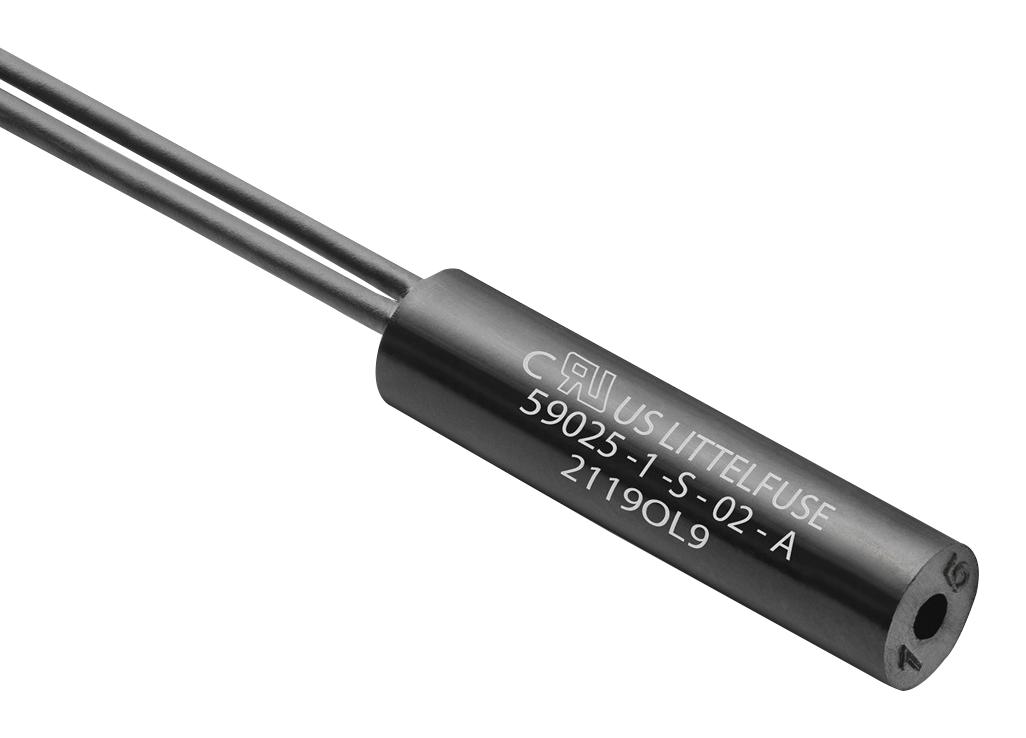

Littelfuse 590251U05A Reed Sensor
The 59025 Reed Sensor is a compact, hermetically sealed contactless switch designed for wet and harsh environments. It features non-contact switching, no leakage current when open, and is ideal for IoT energy management, proximity sensing, and security applications. Constructed with PBT housing and epoxy, it operates reliably in industrial settings, factory automation, and process equipment. Capable of switching up to 265 Vac/300 Vde at 10 VA, it offers various sensitivity options and easy installation, making it suitable for a wide range of industrial and appliance applications, including non-ferrous material operation.
Littelfuse 590251U05A Reed Sensor Specifications:
- Dimensions: 25.4 mm (L) x 6.22 mm (D)
- Housing Material: PBT with epoxy coating
- Sealing: P67 rated, hermetically sealed
- Switching Voltage: Up to 265 Vac / 300 Vde
- Current Rating: 10 VA
- Contact Types: Normally open, normally closed, change-over
- Operating Temperature: -40°C to +105°C
- Shock: 100 Gs
- Vibration: 30 Gs at 50-2000 Hz
- Cable Options: 24 AWG PVC, lengths from 100 mm to 1000 mm
- UL Recognized per UL 508, CSA Certified
- Designed for non-ferrous material operation
- Sensitivity options include various distance ranges
- Switching times: Operate and release within 1 ms.
Buy the Buy Littelfuse 59025 Reed Sensor Part Number 590251U05A Online
Purchasing the Littelfuse 59025 Reed Sensor online ensures reliable, contactless switching in wet and harsh environments. This compact, hermetically sealed sensor is ideal for industrial, factory automation, and IoT applications. It features multiple contact types, operating voltage up to 265 Vac, and easy installation with various cable options. Perfect for non-ferrous material sensing, energy management, and security systems, this sensor offers durability and high performance in demanding environments. Order now for fast delivery and trusted quality to improve your industrial projects.
Order your Littelfuse 59025 Reed Sensor today and enhance your industrial automation and IoT projects with dependable non-contact switching performance.
Frequently Asked Questions
Where can I buy Littelfuse 590251U05A?
You can click on the BUY or RFQ button to purchase 590251U05A from an authorized Littelfuse distributor.
How do I troubleshoot issues or seek technical support for part 590251U05A?
You can download the 590251U05A datasheet or visit the Littelfuse website for support.
Who is the manufacturer of 590251U05A?
Littelfuse
