Littelfuse 0217001HXP Fast-Acting Cartridge Fuse

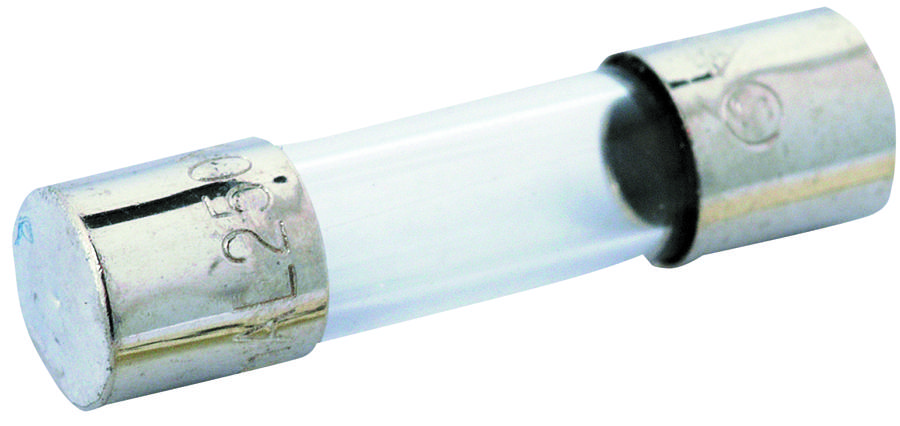

The Littelfuse 0217001.HXP is a 5x20mm fast-acting glass body cartridge fuse designed to IEC specifications. It's a globally recognized solution for supplementary protection in appliance and utilization equipment, providing individual protection for components and internal circuits. This RoHS compliant fuse meets IEC 60127-2 Sheet 2 standards and is available in both cartridge and axial lead forms. Its robust construction and reliable performance make it a suitable choice for a wide range of applications.
Littelfuse 0217001HXP Fast-Acting Cartridge Fuse Specifications:
- Series: 217
- Size: 5 × 20 mm
- Fuse Type: Fast-Acting
- Body Material: Glass
- Cap Material: Nickel-plated brass
- Lead Material: Tin-plated Copper
- RoHS Compliant: Yes
- Agency Approvals: NBK090205-E10480A, NBK120802-E10480C, NBK090205-E10480B, NBK120802-E10480D, 2002010207007600, SU05001-3004, SU05001-2005, SU05001-2006, SU05001-2007, E10480, 29862, 1517221
- Ampere Range: 0.032A – 15A
- Interrupting Rating: Up to 150A @ 250VAC
- Operating Temperature: –55°C to +125°C
- Cold Resistance: Varies by Ampere Rating (see datasheet)
- Voltage Drop: Varies by Ampere Rating (see datasheet)
- Soldering Parameters: Wave Soldering: Preheat 100-150°C, Solder Pot 260°C max, Dwell Time 2-5 seconds. Hand Soldering: 350°C +/- 5°C, 5 seconds max.
