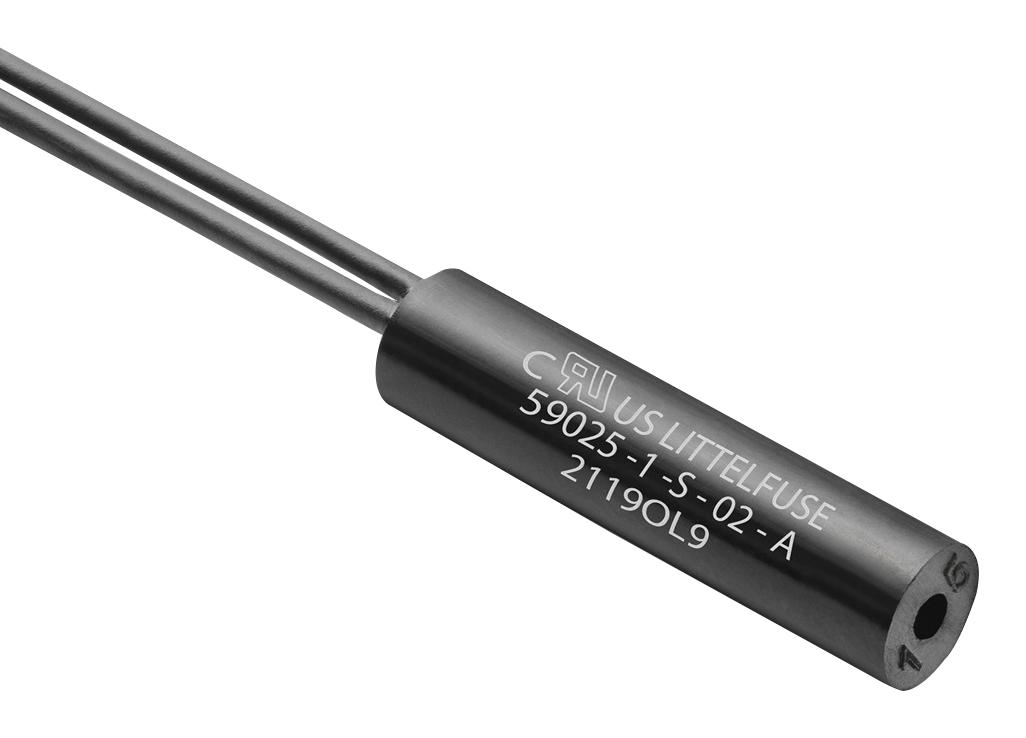

Littelfuse 590251V05A Reed Sensor
The 59025 Reed Sensor is a compact, hermetically sealed non-contact switching device designed for wet and harsh environments. It features optional normally open, normally closed, or change-over contacts, capable of switching up to 265 Vac/300 Vde at 10 VA. The sensor operates through non-ferrous materials like plastic, wood, or aluminum, making it ideal for security, factory automation, and process equipment. With UL recognition, it ensures reliable operation in industrial and IoT applications, offering sensitivity options, easy installation, and effective concealment.
Littelfuse 590251V05A Reed Sensor Specifications:
- Dimensions: 25.4 mm (L) x 6.22 mm (Dia.) (1.00” x 0.245")
- Housing Material: P.B.T. with 30% GF, Black Epoxy
- Sealing: P67 rated, hermetically sealed
- Operating Voltage: up to 265 Vac / 300 Vde
- Switching Voltage: Max 200 Vde
- Switching Current: Max 0.30 Aac / 10 VA
- Contact Types: Normally open, normally closed, change-over
- Sensitivity Range: 12-18 mm (Normally open), 15-20 mm (Change-over), 15-20 mm (Normally closed)
- Response Time: Max 1.0 ms
- Operate/Release Time: Max 1.0 ms
- Operating Temperature: -20°C to +105°C
- Certifications: UL Recognized, CSA C22.2
- Cable Options: 24 AWG PVC UL1430/UL1569, 300 mm or 1000 mm lengths
- Shock: Max 100 G, 11 ms sine wave
- Vibration: Max 30 G, 50-2000 Hz
- Resistance: Contact resistance approximately 20 mΩ
Buy the Buy Littelfuse Reed Sensor Part Number 590251V05A Online
Purchase the Littelfuse Reed Sensor 59025 online today and benefit from fast delivery of this compact, hermetically sealed non-contact switch. Ideal for wet and harsh environments, it offers reliable operation with configurable contact types and UL recognition. Suitable for security, factory automation, and process equipment, this sensor ensures easy installation and dependable performance in demanding industrial applications. Enhance your automation systems with this versatile and durable reed sensor accessible now for quick online ordering.
Order your Littelfuse Series59025 hermetically sealed reed sensor today and enhance your industrial and IoT projects with reliable non-contact switching.
Frequently Asked Questions
Where can I buy Littelfuse 590251V05A?
You can click on the BUY or RFQ button to purchase 590251V05A from an authorized Littelfuse distributor.
How do I troubleshoot issues or seek technical support for part 590251V05A?
You can download the 590251V05A datasheet or visit the Littelfuse website for support.
Who is the manufacturer of 590251V05A?
Littelfuse
