Littelfuse USP10997 Temperature Probe Assembly

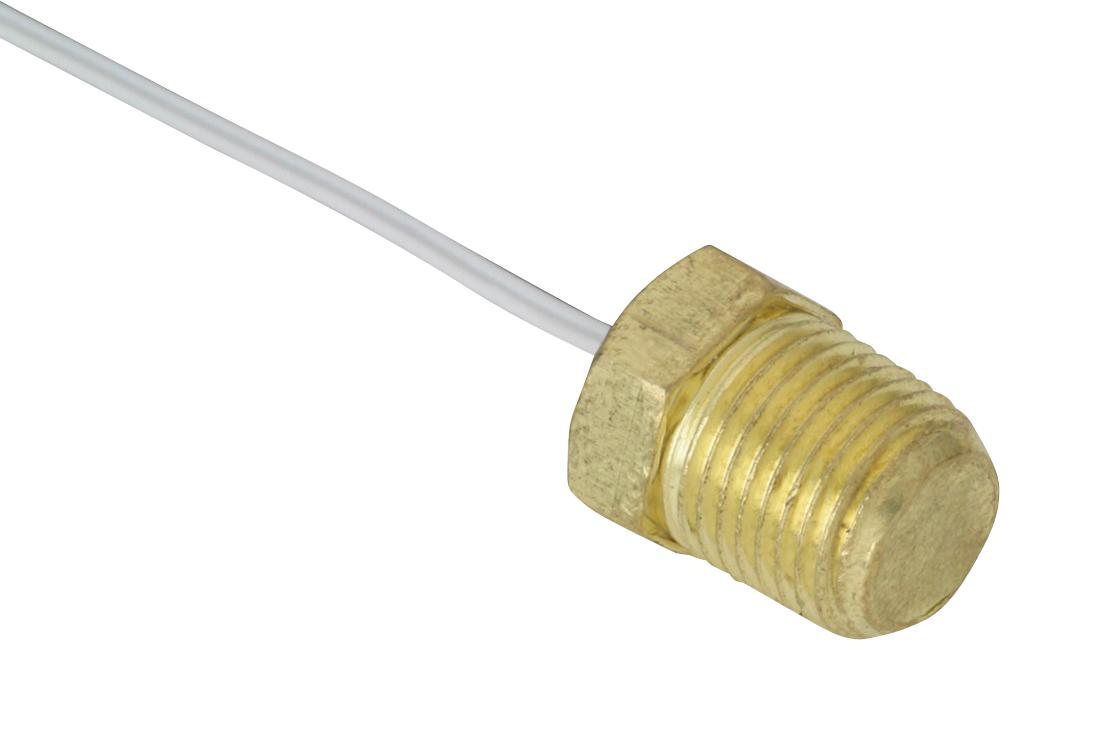

The thermistor probe assemblies are designed by Littelfuse for precise temperature sensing in industrial applications. Made with brass probes and PVC-insulated leads, these threaded assemblies feature a 1/8"-27 NPT thread, suitable for environments up to 105°C. The probes are 6 inches long with a hex width of 0.4375 inches, and the lead wire is 28 AWG stranded copper with a PVC insulation. They are ideal for accurate thermal measurements in HVAC, manufacturing, and process control settings, ensuring durability and reliable performance.
Littelfuse USP10997 Temperature Probe Assembly Specifications:
- Thread Type: 1/8"-27 NPT
- Max Operating Temperature: 105°C
- Lead Wire: PVC insulated, 28 AWG stranded conductor
- Probe Length: 6.00 inches
- Hex Width: 0.4375 inches
- Probe Material: Brass
- Dimensions in inches: Length 6.00, Hex 0.4375, NPT 0.560"
- Electrical Characteristics: Temperature Range -55°C to +105°C
- Insulation: PVC
- Note: Not all part number combinations are available, contact Littelfuse for details
Buy the Littelfuse USP10997 – Reliable Temperature Probe for Industrial Applications
Secure your Littelfuse USP10997 temperature probe assembly online today. Designed for reliable temperature sensing with brass probes and PVC-insulated lead wire, this threaded assembly offers up to 105°C max operating temperature. Ideal for HVAC, manufacturing, and process control, it ensures precise thermal measurement in critical applications. With durable construction and easy installation, this probe provides long-lasting, dependable performance. Purchase now to enhance your industrial temperature monitoring systems with confidence and efficiency.
Order your Littelfuse USP10997 thermistor probe assembly today and ensure accurate temperature measurement in your industrial systems.
