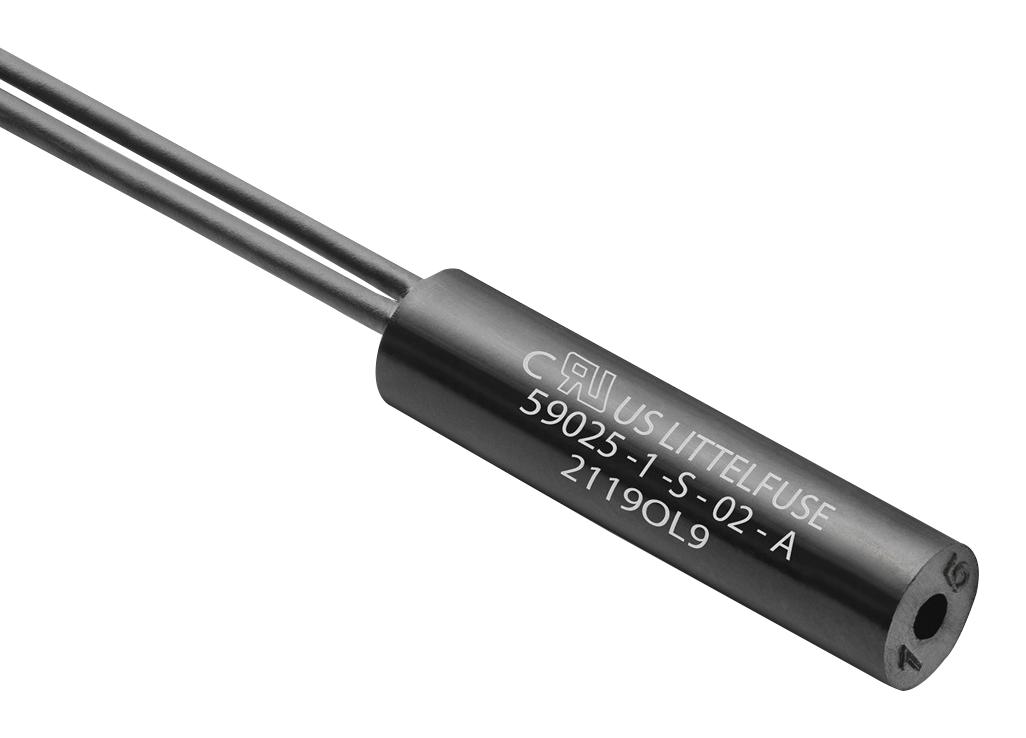

Littelfuse 590252T05A Reed Sensor
The 59025 Reed Sensor is a compact, hermetically sealed, P67 rated non-contact switching device ideal for wet and harsh environments. It features various contact types—normally open, normally closed, or change-over—and can switch up to 265 Vac/300 Vde at 10 VA. Its small size (25.4 mm length x 6.22 mm diameter) allows easy installation and concealment in industrial automation, security, and IoT applications. It operates through non-ferrous materials such as wood, plastic, or aluminum and is UL recognized, making it suitable for energy management and proximity sensing in demanding environments.
Littelfuse 590252T05A Reed Sensor Specifications:
- Dimensions: 25.4 mm length x 6.22 mm diameter (1.00 inch x 0.245 inch)
- Housing Material: PBT with 30% glass fill, Black Epoxy
- Sealing: Hermetically sealed, P67 rated
- Contact Type: Normally open, normally closed, change-over
- Switching Voltage: Up to 265 Vac/300 Vde at 10 VA
- Operating Temperature Range: -40°C to +105°C
- Operate Time: Max 1.0 ms
- Release Time: Max 1.0 ms
- Vibration: Max 30 G (50-2000 Hz)
- Shock: Max 100 G (11 ms sine)
- UL Recognized, CSA certified
- Operating Distance Range: varies with sensitivity; typically 12-30 mm
- Cable Options: 24 AWG PVC, lengths up to 1000 mm
- Application: Security, factory automation, proximity sensing, energy management
- Agency Approvals: UL 508, CSA C22.2 No. 14
Buy the Littelfuse 59025 U+2013 Reliable Reed Sensor for Industrial Applications
Order the Littelfuse 59025 Reed Sensor today online and enhance your industrial automation systems with a compact, hermetically sealed, UL-recognized switch. It’s designed for wet environments, offering reliable non-contact switching up to 265 Vac. Easy to install and conceal, this sensor is perfect for security, energy management, and proximity sensing applications. With customizable cable lengths and various contact options, it ensures versatile performance for demanding industrial, appliance, and IoT applications. Purchase now to benefit from fast delivery and premium quality.
Buy Littelfuse 59025 now and experience unmatched reliability and performance in wet and harsh environments, perfect for industrial automation and IoT solutions.
Frequently Asked Questions
Where can I buy Littelfuse 590252T05A?
You can click on the BUY or RFQ button to purchase 590252T05A from an authorized Littelfuse distributor.
How do I troubleshoot issues or seek technical support for part 590252T05A?
You can download the 590252T05A datasheet or visit the Littelfuse website for support.
Who is the manufacturer of 590252T05A?
Littelfuse
