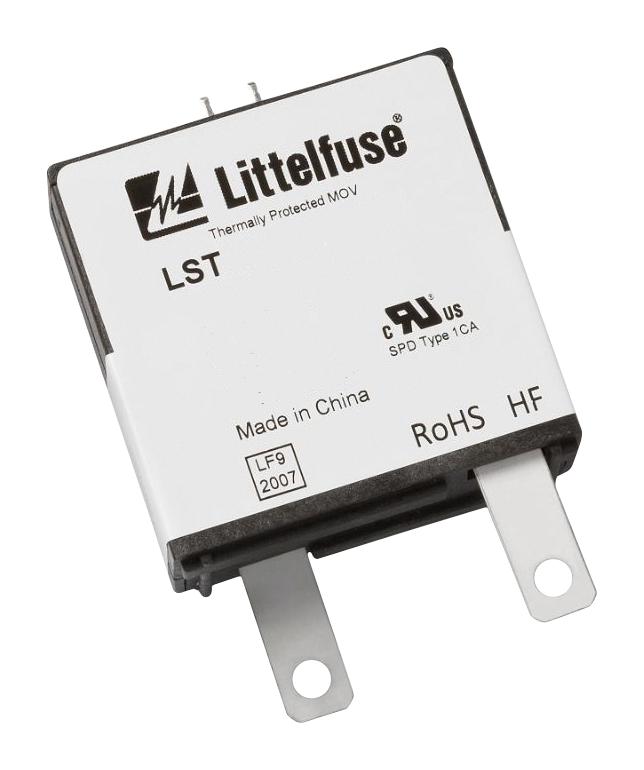

Littelfuse LST1507VL2NT1 Thermally Protected Surge Protector
The LST series Metal Oxide Varistors feature Littelfuse's thermally protected technology, offering built-in thermal disconnection and arc shielding for safety during overvoltage events. They include mechanically triggered AC/DC micro-switch options for remote status indication, compatible with Type 1 and Type 2 surge protective devices. Designed for UL1449 compliance, these MOVs share uniform PCB footprints for 50kA and 75kA ratings, with visual indicators and end-of-life signage. Environmentally friendly, they ensure reliable surge suppression, protecting electrical systems from catastrophic failures and fire hazards during operation.
Littelfuse LST1507VL2NT1 Thermally Protected Surge Protector Specifications:
- Voltage Rating: 320V to 385V AC
- Imax Rating: 50kA and 75kA options
- Thermal Disconnect: Built-in for enhanced safety
- Environmental Ratings: -40°C to +85°C
- Insulation Resistance: > 100 MΩ
- Response Time: Fast surge suppression
- Switch Options: Normally Open or Normally Closed micro-switch
- Switch Pin Rating: 60 Vdc/0.2 A, or 250 Vac/0.1 A
- RoHS Compliant: Yes, Lead-free, Halogen-free
- Physical Dimensions: Same footprint for 50kA and 75kA models, footprint and PCB layout standardized
- Compliance: UL1449 Type 4 recognized
- Temperature Range: -40°C to +85°C
- Protection Features: Electric arc shield, visual status indicator
- Mounting: Compatible with standard PCB footprint
- Application: Surge protective devices (SPDs), surge suppression, electrical system protection
Buy the Littelfuse LST1507VL2NT1 – Reliable Surge Protection for Industrial Applications
Purchase the Littelfuse LST1507VL2NT1 thermally protected surge protector today and ensure superior surge suppression for your electrical systems. Featuring built-in thermal disconnection, visual indicators, and UL1449 compliance, this device offers safe, reliable, and environmentally friendly surge protection. Its standardized footprint allows seamless integration into existing circuits, while the remote monitoring options enable easy status checks and end-of-life replacement signaling. Ideal for Type 1 and Type 2 SPDs, this MOV combines safety, performance, and eco-conscious design—order now for optimal surge protection and peace of mind in industrial applications.
Buy Littelfuse LST1507VL2NT1 now and experience unmatched reliability and fire-safe surge protection in industrial environments.
