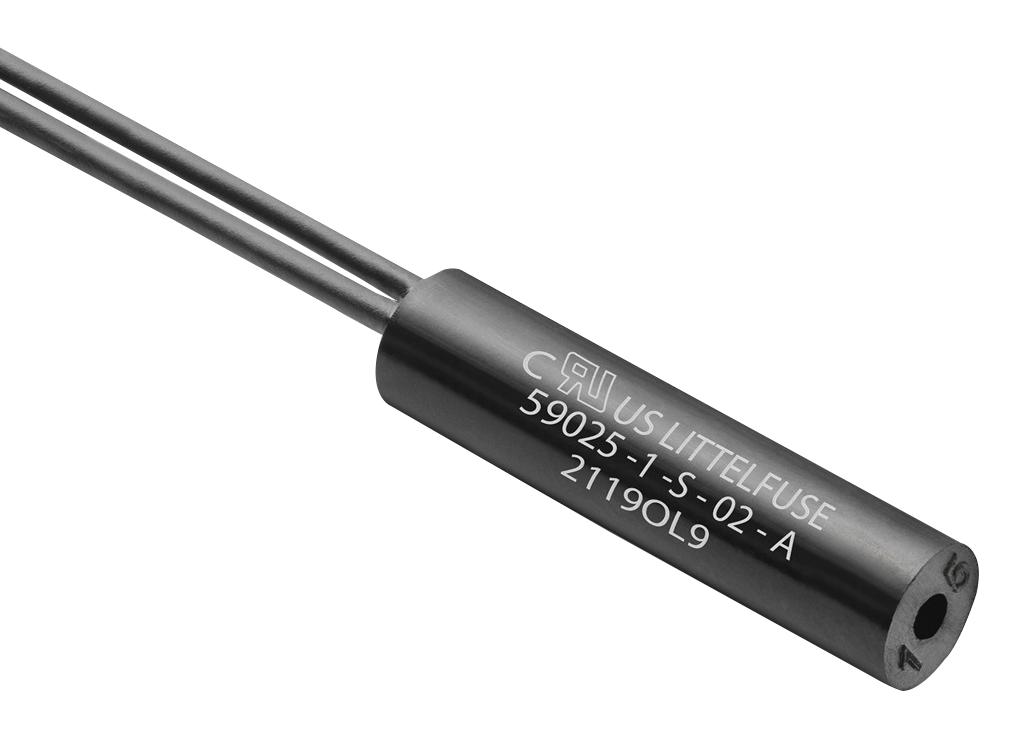

Littelfuse 590254S05A Reed Sensor
The 59025 Reed Sensor is a compact, hermetically sealed, non-contact switching device ideal for wet and harsh environments. It features no leakage current in open state, making it perfect for battery-powered IoT applications. Suitable for security, factory automation, and process equipment, it operates with Normally Open, Normally Closed, or Change-Over contacts. Its ability to switch up to 265 Vac/300 Vde at 10 VA, along with multiple sensitivity and cable options, ensures versatile industrial and appliance use. Exceptional durability and easy installation enhance system reliability in various demanding environments.
Littelfuse 590254S05A Reed Sensor Specifications:
- Dimensions: 25.4 mm length, 6.22 mm diameter (1.00 inch x 0.245 inch)
- Housing Material: 30% Glass-filled PBT
- Sealing: Hermetically sealed, P67 rating
- Contact Type: Normally Open, Normally Closed, Change-Over
- Contact Rating: Max 10 VA / 10 W; Switches up to 265 Vac / 300 Vde
- Switching Voltage: Max 265 Vac, 300 Vde
- Switching Current: Max 0.35 Aac
- Operates through non-ferrous materials
- Operating Temperature: -40°C to +105°C
- Operate/Release Time: Max 1.0 ms
- Shock Resistance: Max 100 G (11 ms sine)
- Vibration Resistance: Max 30 G (50-2000 Hz)
- Cable Options: 300 mm or 1000 mm UL-rated PVC Leads
- Agency Approval: UL Recognized, CSA Certified
Buy the Littelfuse Series 59025 Reed Sensor: 59025
Purchase the Littelfuse 59025 Reed Sensor online today for robust, contactless switching in industrial, automation, security, and IoT applications. Compact and hermetically sealed, it operates reliably in wet and harsh environments, ensuring long-lasting performance. Ideal for use in factory automation and process equipment, its versatility with various sensitivity and cable options makes it suitable for a wide range of applications. Enjoy quick delivery, secure checkout, and trusted quality when you buy this high-performance reed sensor now.
Get Littelfuse 59025 Reed Sensor today—built for precision, durability, and reliable non-contact switching in harsh environments.
Frequently Asked Questions
Where can I buy Littelfuse 590254S05A?
You can click on the BUY or RFQ button to purchase 590254S05A from an authorized Littelfuse distributor.
How do I troubleshoot issues or seek technical support for part 590254S05A?
You can download the 590254S05A datasheet or visit the Littelfuse website for support.
Who is the manufacturer of 590254S05A?
Littelfuse
