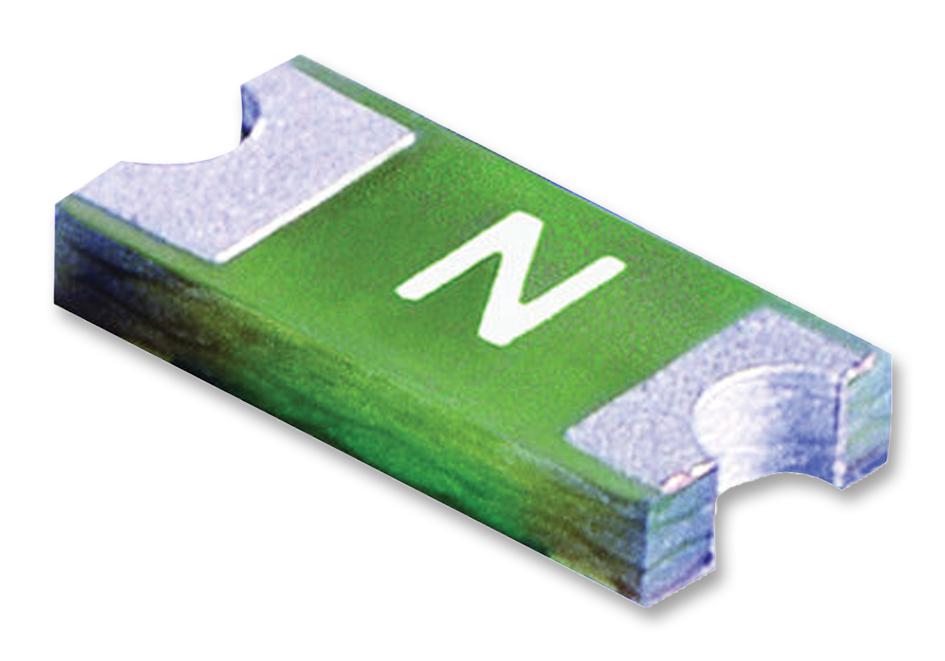

Littelfuse 0466004NR Fast-Acting Surface Mount Fuse
The LITTELFUSE 466 Series Fast-Acting Surface Mount Fuse (SMF) is a compact (1206 size) thin-film device engineered for secondary protection in circuits with limited space, commonly found in handheld portable electronic devices. This series is 100% lead-free and compliant with the RoHS directive, with halogen-free options available. The fuse features an advanced high-temperature substrate, alloy-based element, conformal coating, and markings for easy identification. It's designed for compatibility with lead-free solders and standard cleaning profiles, offering superior inrush withstand and flat surface for pick-and-place operations. Applications include cell phones, DVD players, battery packs, digital cameras, and hard disk drives.
Littelfuse 0466004NR Fast-Acting Surface Mount Fuse Specifications:
- Agency Approvals: E10480 (125mA - 5A), LR29862 (125mA - 5A)
- Ampere Range: 0.125A - 5A
- Opening Time (100%): 4 hours (minimum)
- Opening Time (200%): 5 seconds (maximum)
- Opening Time (300%): 0.2 seconds (maximum)
- Operating Temperature: -55°C to +90°C
- Insulation Resistance: Greater than 10,000 ohms
- Resistance to Soldering Heat: MILSTD-202G, Method 210F
- Thermal Shock: MILSTD-202F Method 201A
- Humidity: MILSTD-202F Method 103B, Condition D
- Body Material: Advanced High Temperature Substrate
- Element Material: Alloy-based
- Element Cover Coat: Conformal Coating
- Terminations: 100% Tin over Nickel over Copper
- Packaging: Tape and Reel (5000 pcs per reel)
- Marking Code: Varies with amperage rating (See Part Marking System table)
Buy the 0466004.NR LITTELFUSE Fast-Acting Surface Mount Fuse | myMectronic
Securely purchase the LITTELFUSE 0466004.NR Fast-Acting Surface Mount Fuse online for reliable circuit protection.
Buy Now
Frequently Asked Questions
Where can I buy Littelfuse 0466004NR?
You can click on the BUY or RFQ button to purchase 0466004NR from an authorized Littelfuse distributor.
How do I troubleshoot issues or seek technical support for part 0466004NR?
You can download the 0466004NR datasheet or visit the Littelfuse website for support.
Who is the manufacturer of 0466004NR?
Littelfuse
