Littelfuse 590401T02F Position Sensor

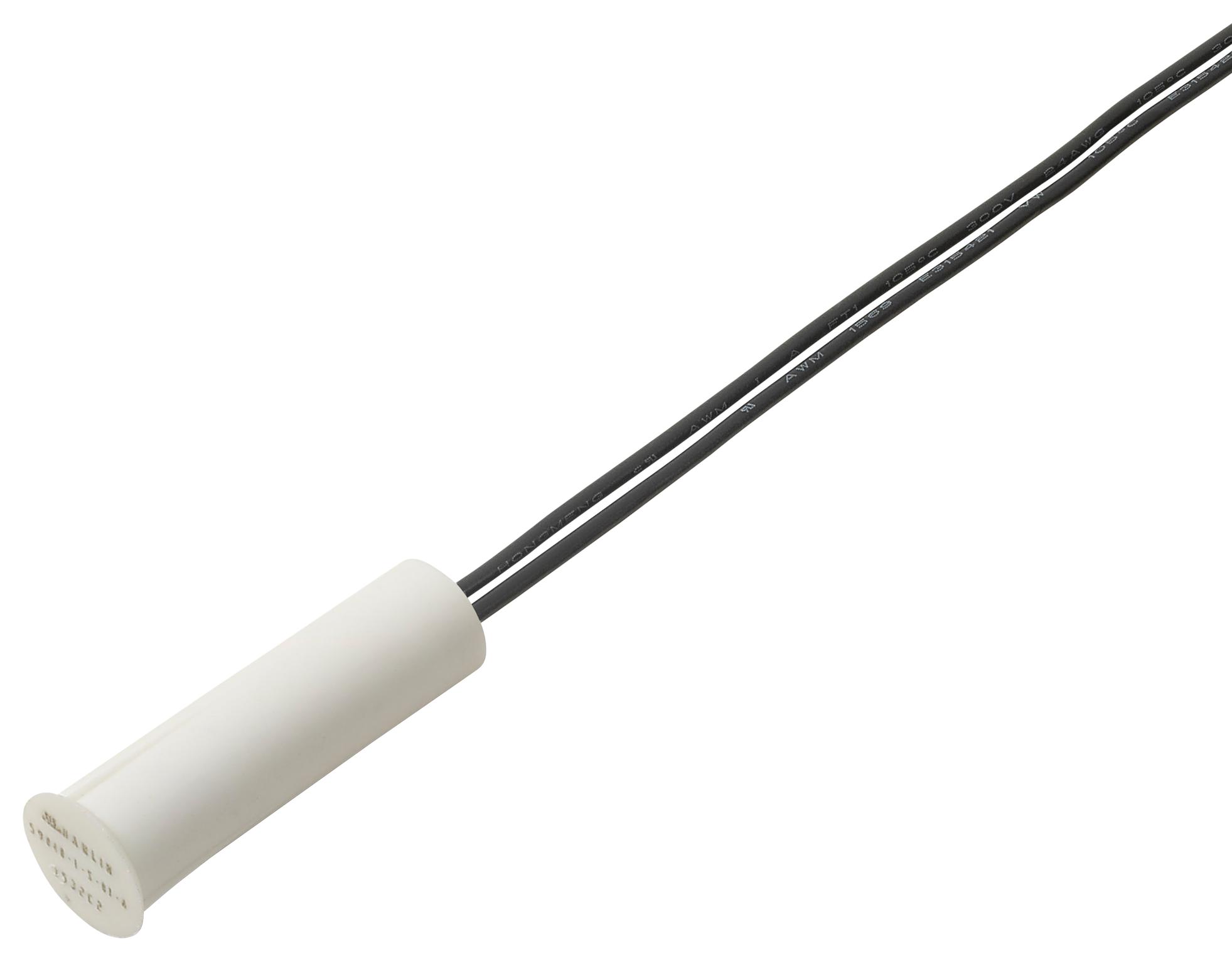

The 59040 Press-Fit Firecracker Reed Sensor is a compact, cylindrical device designed for secure press-fit installation into non-ferrous materials like plastic, wood, or aluminum. Measuring 31.0mm in length, it fits into a 9.5mm diameter hole and offers normally open, normally closed, or change-over contacts capable of switching up to 200Vdc at 10W. Suitable for position, limit, security, and level sensing applications, it operates reliably in high-moisture environments, providing fast response times and durable, hermetically sealed contacts, making it ideal for industrial automation and security systems.
Littelfuse 590401T02F Position Sensor Specifications:
- Dimensions: 31.0mm (1.22 inches) long, 9.5mm (0.375 inches) diameter
- Material: Plastic housing with crush ribs for secure press-fit
- Switching Voltage: up to 200Vdc, 140V AC
- Switching Power: Up to 10W
- Contact Type: Normally open, normally closed, change-over options
- Operating Temperature: -40°C to +105°C
- Resistance: Contact resistance less than 0.2 ohms
- Operate Time: Max 1.0 ms
- Release Time: Max 1.0 ms
- Fitment: Fits into 9.5mm drill hole, suitable for non-ferrous materials
- Environmental: Suitable for high-moisture environments
- Cable: 24 AWG PVC, 105°C UL1430/UL1569 rated, length customizable
Buy the Boney 59040 U–2013 Reliable Position Sensor for Industrial Applications
Order the Boney 59040 press-fit reed sensor online today to enhance your automation system. This compact, reliable sensor offers fast switching, hermetically sealed contacts, and easy installation into non-ferrous materials. Perfect for limit, position, security, and level sensing, it operates efficiently in high-moisture environments, providing long-lasting performance. Whether you're upgrading existing equipment or deploying new systems, purchasing online simplifies your process ensuring quality, swift delivery, and technical support. Invest in trusted sensing technology today for durable industrial solutions.
Buy Boney 59040 now and experience unmatched reliability and performance for your industrial sensing needs with easy press-fit installation.
Frequently Asked Questions
Where can I buy Littelfuse 590401T02F?
You can click on the BUY or RFQ button to purchase 590401T02F from an authorized Littelfuse distributor.
How do I troubleshoot issues or seek technical support for part 590401T02F?
You can download the 590401T02F datasheet or visit the Littelfuse website for support.
Who is the manufacturer of 590401T02F?
Littelfuse
