Littelfuse 590404U02A Proximity Sensor

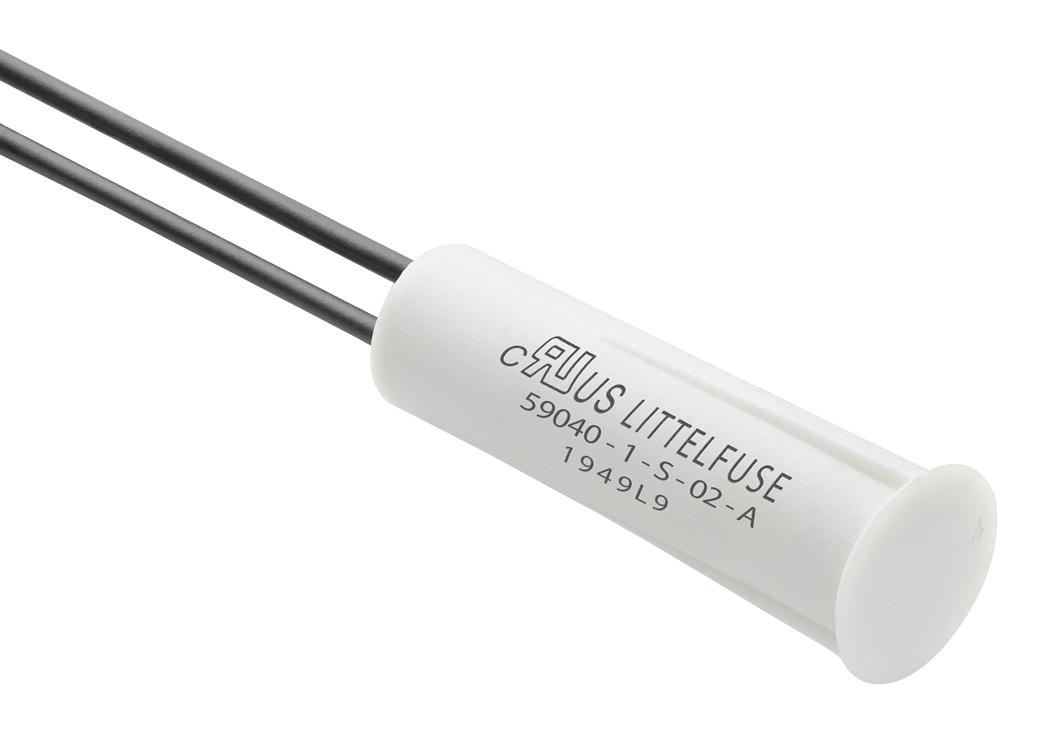

The 59040 Press-Fit Reed Sensor is a compact, cylindrical proximity sensor measuring 31.0 mm long, designed for easy press-fit installation into 9.5 mm holes. Suitable for industrial, automation, and IoT applications, it features normally open, normally closed, or change-over contacts, capable of switching up to 200 V at 10 W. Hermetically sealed with an IP67 rating, it operates across a broad temperature range from -40°C to +105°C. The sensor is ideal for non-contact sensing of non-ferrous materials in harsh environments, offering reliability and flexibility for security, factory automation, and proximity detection tasks.
Littelfuse 590404U02A Proximity Sensor Specifications:
- Length: 31.0 mm
- Diameter: 9.5 mm
- Housing Material: Not specified, white color housing
- Sealing: IP67 rated, hermetically sealed
- Operating Temperature: -40°C to +105°C
- Switching Voltage: Up to 200 V
- Contact Rating: 10 W
- Contact Types: Normally open, normally closed, change-over
- Activation Distance (typical): 12-38 mm depending on sensitivity and application
- Deactivation Distance (typical): 16-36 mm depending on sensitivity and application
- Cable Length Options: 100 mm to 1000 mm, UL 105°C PVC cable
- Connection: Tinned leads or cable options available
- Standards: UL Recognized (UL 508), CSA, REACH compliant
- Vibration Tolerance: Up to 30 G
- Shock Resistance: Up to 100 G sine wave
Buy the Littelfuse 59040U02A – Reliable Proximity Sensor for Industrial Applications
Enhance your automation systems with the reliable and compact proximity sensor designed for harsh industrial environments. Featuring easy press-fit installation, hermetically sealed IP67 housing, and versatile contact options, this sensor ensures dependable non-contact sensing of non-ferrous materials. It supports a broad temperature range from -40°C to +105°C and can handle switching voltages up to 200 V with a contact rating of 10 W. Perfect for security, factory automation, and proximity detection, order online today for efficient deployment and long-term performance.
Get Littelfuse 59040U02A today—built for precision and long-lasting durability in demanding industrial environments.
Frequently Asked Questions
Where can I buy Littelfuse 590404U02A?
You can click on the BUY or RFQ button to purchase 590404U02A from an authorized Littelfuse distributor.
How do I troubleshoot issues or seek technical support for part 590404U02A?
You can download the 590404U02A datasheet or visit the Littelfuse website for support.
Who is the manufacturer of 590404U02A?
Littelfuse
