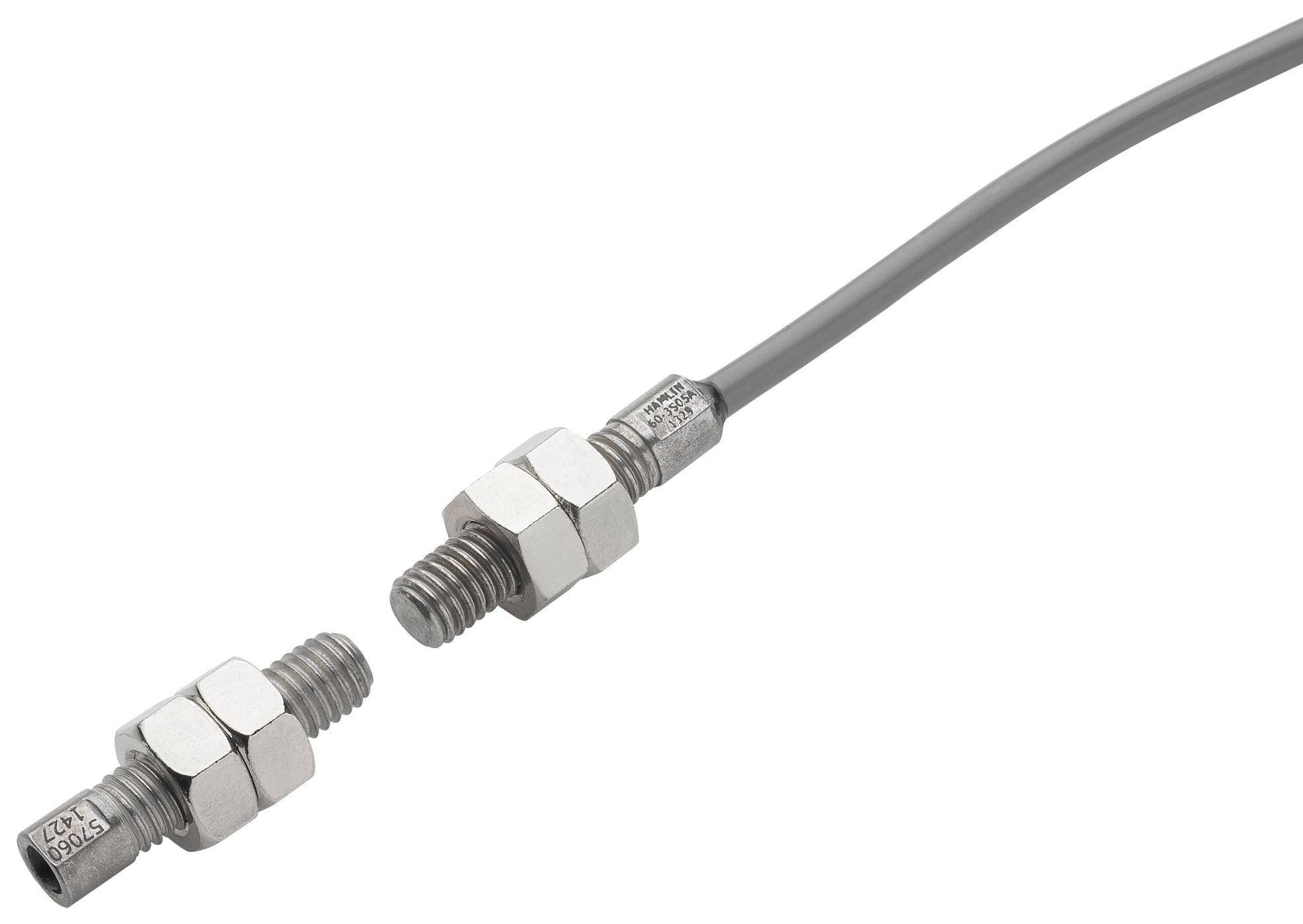

Littelfuse 590601T03A Industrial Position Sensor
The 59060 stainless steel barrel sensor features an M8 x 1.25mm thread, 36mm long, with options for normally open, normally high voltage, normally closed, or changeover contacts, capable of switching up to 265Vac/300Vdc at 10VA. It operates effectively in harsh environments and with non-ferrous materials, making it suitable for position sensing, industrial process control, security, and linear actuators. Its robust stainless steel construction ensures durability and ease of installation with supplied nuts, enabling reliable performance in industrial settings.
Littelfuse 590601T03A Industrial Position Sensor Specifications:
- Thread Size: M8 x 1.25mm pitch
- Length: 36mm (1.420 inches)
- Switching Capacity: up to 265Vac and 300Vdc at 10VA
- Operating Temperature: -40°C to +105°C
- Contact Types: Normally open, normally high voltage, normally closed, changeover
- Materials: Stainless steel barrel
- Cable Options: Tinned or untinned leads, 24 AWG, 7/32 inch PVC insulation, 105°C rated
- Sensitivity Range: Varies from 12-33mm depending on configuration
- Actuation Distance: Minimum 5.5mm to 17mm depending on mode
- Mounting: Uses supplied retaining nuts for easy installation
- Application: Position sensing, process control, security, linear actuators
Buy the Buy Littelfuse Stainless Steel Sensor Part Number 590601T03A Online
Get the Littelfuse 59060 stainless steel barrel sensor online today. Designed for robust industrial applications, it features an M8 thread, multiple contact options, and high voltage switching. Ideal for position sensing, process control, security, and linear actuators, this sensor offers easy installation with supplied nuts and durable construction. You can choose from various cable lengths and termination options to suit your needs. Trust Littelfuse for reliable, high-performance sensing solutions online—order now for fast, secure delivery.
Buy Littelfuse 59060 stainless steel barrel sensor now and experience reliable performance and secure position sensing in industrial environments.
