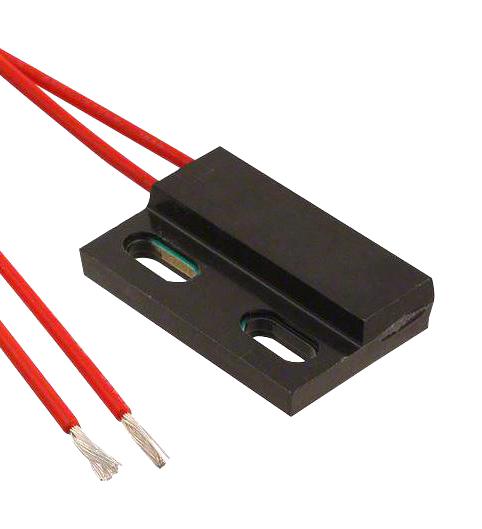

Littelfuse 591351S04A high temperature proximity sensor
The 59135 high temperature flange mount sensor is a magnetically operated proximity switch rated for operation up to 150°C. Measuring 28.57mm x 19.05mm x 6.3mm, it offers selectable normally open, normally closed, or changeover contacts capable of switching up to 265Vac/300Vdc at 10VA. Its case design allows screw or adhesive mounting, making it ideal for position and limit sensing, security systems, and linear actuators. It features hermetically sealed contacts, cross-slotted mounting holes for adjustability, and no standby power requirement, ensuring reliable long-term performance in demanding environments.
Littelfuse 591351S04A high temperature proximity sensor Specifications:
- Dimensions: 28.57mm x 19.05mm x 6.3mm
- Max operating temperature: 150°C
- Switching voltage: up to 265Vac/300Vdc at 10VA
- Contact ratings: 10 VA max, 200V max
- Wire options: Tinned or untinned leads, 20 AWG FEP cable, 11.81 inches (300mm)
- Mounting: Screw or adhesive
- Sealed contacts for contamination resistance
- Switch types: Normally open, normally closed, changeover
- Agency approvals: Wis File No. £61760
- Operation time: Max 1.0 ms
- Vibration resistance: Max 30 G
- Shock resistance: Max 100 G
- Insulation resistance: minimum 10 MΩ
- Capacitance: approx. 0.02-0.03 pF
- Breakdown voltage: Min 250 V
- Relay or switch contact type: Magnetic proximity
Buy the Buy Littelfuse High Temperature Flange Mount Sensor Part Number 591351S04A Online
Acquire the Littelfuse high temperature flange mount proximity sensor online today for precise position detection in demanding industrial applications. Designed for environments up to 150°C, it features hermetically sealed contacts and multiple mounting options such as screw or adhesive fixing. Its compact size of 28.57mm x 19.05mm x 6.3mm and various contact configurations make it versatile for use in limit switches, security, and automation systems. Maintain performance and durability with this reliable, easy-to-install sensor available for immediate purchase online.
Order your Littelfuse 59135 High Temperature Flange Mount Sensor today and ensure reliable position sensing in high-temperature environments.
