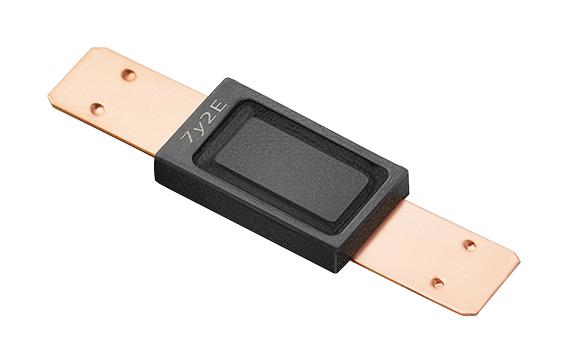

Littelfuse MHPTAC151272N Battery Protection Breaker
The Metal Hybrid PPTC breaker MHP-TAC offers higher voltage (12VDC) and compact size for ultrathin battery packs. Designed for Lithium Polymer and Prismatic batteries, it provides resettable overtemperature and overcurrent protection. Evaluated to UL and IEC standards, it features multiple activation temperatures (72°C to 90°C). Ideal for mobile devices like laptops, tablets, and smartphones, this breaker helps meet safety requirements with its small dimensions (4.75mm x 2.8mm x 0.8mm). It ensures reliable, safe operation by disconnecting damaged circuits during fault conditions.
Littelfuse MHPTAC151272N Battery Protection Breaker Specifications:
- Dimensions: 4.75mm x 2.8mm x 0.8mm
- Operation Temperature: 72°C +/- 5°C to 90°C +/- 5°C
- Voltage Rating: DC 12V/26A, 6000 Cycles
- Maximum Breaking Current: 12A at 12V DC, 6000 Cycles; 40A at 5V DC, 100 Cycles
- Hold Current: 15A at 25°C
- Maximum Leakage Current: 150mA@25°C
- Resistance: 5 milliohms Max.
- Operating Temperature Range: -30°C to 100°C
- Certifications: UL 60730-1, UL 60730-2-9, CAN/CSA E60730-1, IEC 60730-1
Buy the Littelfuse Series MHP Thermal Cutoff: MHPTAC151272N
Experience the reliability of the Littelfuse MHPTAC151272N, a compact thermal cutoff device designed for Lithium Polymer and prismatic batteries. With high voltage rating (12VDC), multiple activation temperatures from 72°C to 90°C, and evaluated to UL and IEC standards, it provides essential overtemperature and overcurrent protection for mobile devices like laptops, tablets, and smartphones. Its small size allows for ultra-thin battery assembly, ensuring safety, durability, and optimal performance for modern portable electronics.
Get Littelfuse MHPTAC151272N today—built for precision and long-lasting durability in Battery Protection Devices.
