Littelfuse 596304T02F Liquid Level Sensor
The 59630 is a reed level sensor with an integral float actuator, featuring an M8 x 1.25mm thread and various contact configurations. It is suitable for liquid level and industrial process control, offering hermetically sealed operation and no standby power. The sensor uses a polypropylene float with integral magnet, operates with a quick response within 1 millisecond, and switches up to 265V AC/300V DC at 10VA. Its robust design makes it ideal for air conditioning, condensate detection, and industrial automation, providing reliable and corrosion-resistant liquid level detection.
Littelfuse 596304T02F Liquid Level Sensor Specifications:
- Operation Temperature: -20°C to +105°C
- Switching Voltage: up to 265V AC/300V DC
- Contact Rating: 10 VA maximum
- Contact Resistance: 0.2 Ω initial
- Insulation Resistance: 10^9 Ω
- Capacitance: 3 pF (typical)
- Operate Time: max 1.0 ms
- Release Time: max 1.0 ms
- Shock Resistance: 100 g (sine)
- Vibration Resistance: 30 g, 50-2000 Hz
- Float Material: Polypropylene
- Thread Size: M8 x 1.25 mm
- Cable Type: 24 AWG, 7/32 PVC, 105°C UL1430/UL1569
- Cable Length Options: 300 mm (11.81 inches)
- Switch Types: Normally Open, Normally Closed, Change Over
- Sealed and RoHS Compliant
- Simple installation with M8 threaded connector and integrated float actuator

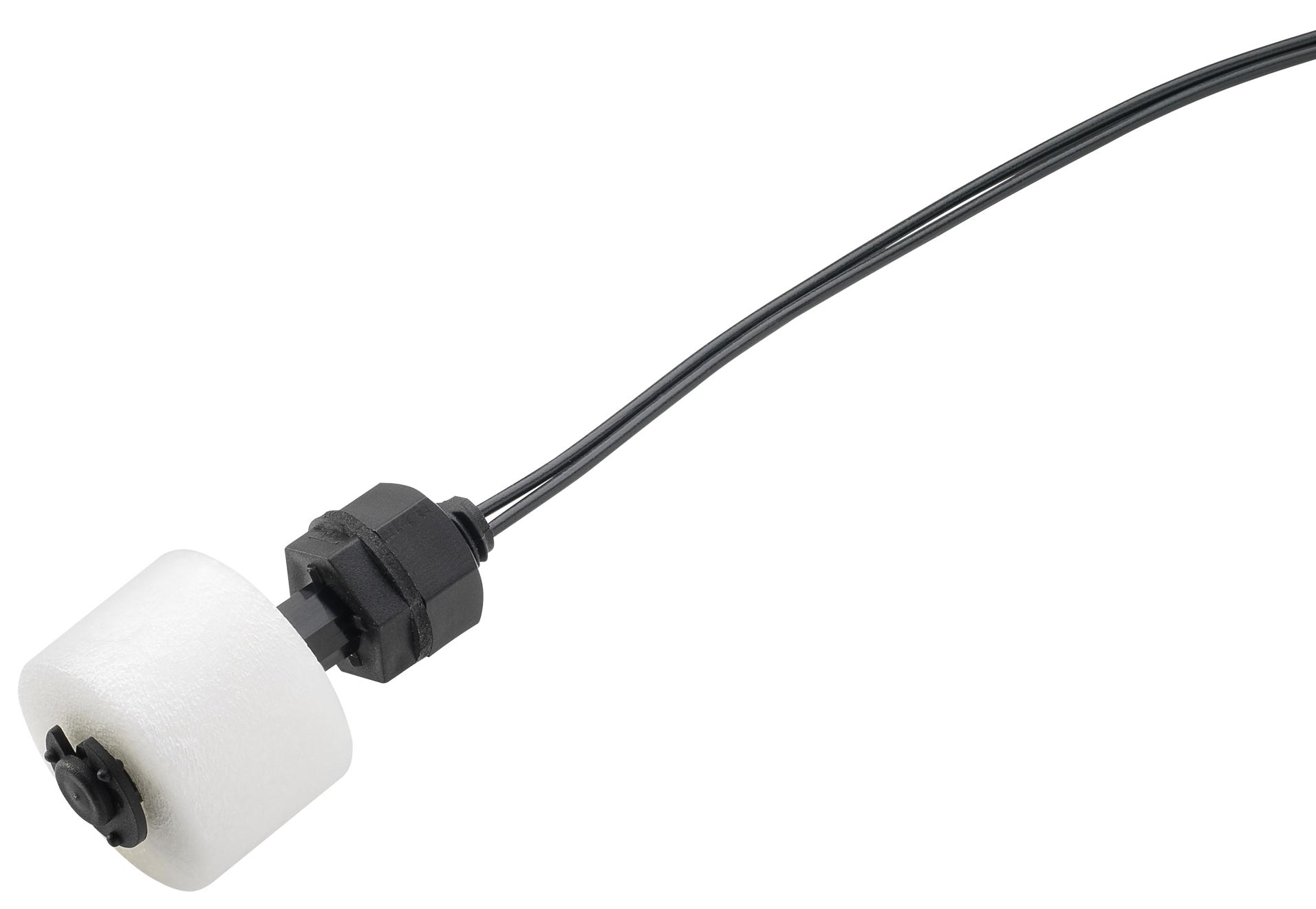

Buy the Buy Littelfuse 59630 Sensor Part Number 59630 Online
Purchase the Littelfuse 59630 liquid level sensor online today for accurate and dependable liquid and air conditioning condensate detection. Designed with an integral float actuator and hermetic sealing, it ensures long-lasting durability in industrial and process control environments. Easy to install with M8 threading and available with different contact options, this sensor can switch up to 265V AC and 300V DC, with a response time of less than 1 millisecond. Invest in reliable liquid level detection for your industrial automation needs today.
Get Littelfuse 59630 sensor today—built for liquid level control and industrial reliability with hermetically sealed design and fast response.
Frequently Asked Questions
Where can I buy Littelfuse 596304T02F?
You can click on the BUY or RFQ button to purchase 596304T02F from an authorized Littelfuse distributor.
How do I troubleshoot issues or seek technical support for part 596304T02F?
You can download the 596304T02F datasheet or visit the Littelfuse website for support.
Who is the manufacturer of 596304T02F?
Littelfuse
